LTC1728-1.8, Multiple Power Supplies Track During Power Up

Reference Design using part LTC1728ES5-1.8 by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Power Management
  • Product Type
    Microprocessor Power Supervisory

For End Products

  • Desktop PC
  • Instrumentation and Measurement
  • Laptop
  • Notebook
  • Portable
  • Servers

Description

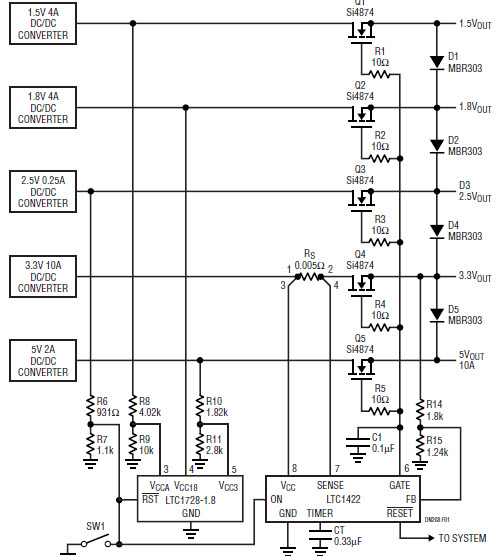

  • LTC1728-1.8, Triple Supply Monitor and the LTC1422 Single Hot-Swap Controller. The LTC1728-1.8 Directly Monitors three Supply Outputs: 5V, 1.8V and 1.5V. The Outputs of the 3.3V and 2.5V Supplies are Monitored by the LTC1422

Featured Parts (16)

Featured Parts
Part Number Manufacturer Type Description
LTC1422CS8#TR Analog Devices Hot Swap Controllers Hot Swap Controller 1-CH 12V N-Channel Positive Low Voltage 8-Pin SOIC N T/R Buy
LTC1422CS8 Analog Devices Hot Swap Controllers Hot Swap Controller 1-CH 12V N-Channel Positive Low Voltage 8-Pin SOIC N Buy
LTC1422IS8#TR Analog Devices Hot Swap Controllers Hot Swap Controller 1-CH 12V N-Channel Positive Low Voltage 8-Pin SOIC N T/R Buy
LTC1422IS8#TRPBF Analog Devices Hot Swap Controllers Hot Swap Controller 1-CH 12V N-Channel Positive Low Voltage 8-Pin SOIC N T/R Buy
LTC1422IS8 Analog Devices Hot Swap Controllers Hot Swap Controller 1-CH 12V N-Channel Positive Low Voltage 8-Pin SOIC N Buy
LTC1422IN8#PBF Analog Devices Hot Swap Controllers Hot Swap Controller 1-CH 12V N-Channel Positive Low Voltage 8-Pin PDIP N Tube Buy
LTC1422CS8#TRPBF Analog Devices Hot Swap Controllers Hot Swap Controller 1-CH 12V N-Channel Positive Low Voltage 8-Pin SOIC N T/R Buy
LTC1422CN8#PBF Analog Devices Hot Swap Controllers Hot Swap Controller 1-CH 12V N-Channel Positive Low Voltage 8-Pin PDIP N Tube Buy
LTC1422CS8#PBF Analog Devices Hot Swap Controllers Hot Swap Controller 1-CH 12V N-Channel Positive Low Voltage 8-Pin SOIC N Tube Buy
LTC1422IS8#PBF Analog Devices Hot Swap Controllers Hot Swap Controller 1-CH 12V N-Channel Positive Low Voltage 8-Pin SOIC N Tube Buy
LTC1728ES5-1.8 Analog Devices Supervisory Circuits Processor Supervisor 2.805V/1.683V/Adj 3 Active Low/Open Drain 5-Pin TSOT-23 Tube Buy
LTC1728ES5-1.8#TRMPBF Analog Devices Supervisory Circuits Processor Supervisor 2.805V/1.683V/Adj 3 Active Low/Open Drain 5-Pin TSOT-23 T/R Buy
Load More
