TIDA-00155, DLP Near-Infrared Spectrometer for Optical Analysis of Liquids and Solids

Reference Design using part DLPC350ZFF by Texas Instruments

Enlarge

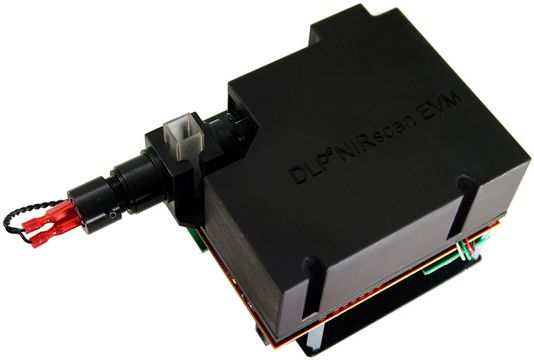

DLP NIRscan Kit Image (Sheet 1 of 32)
DLP NIRscan System Block Diagram (Sheet 2 of 32)
Electronic Block Diagram (Sheet 3 of 32)

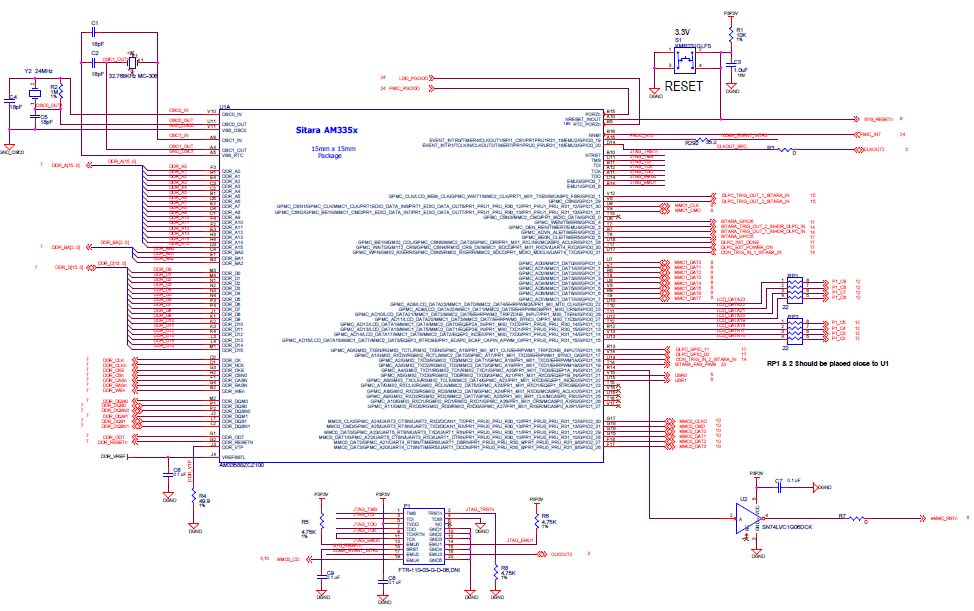

Sitara Crystals, LCD, JTAG (Sheet 4 of 32)
Sitara USB, LCD (Sheet 5 of 32)
Sitara Power, Bypass (Sheet 6 of 32)
Boot Configuration, User LEDs (Sheet 7 of 32)
DDR3L SDRAM (Sheet 8 of 32)

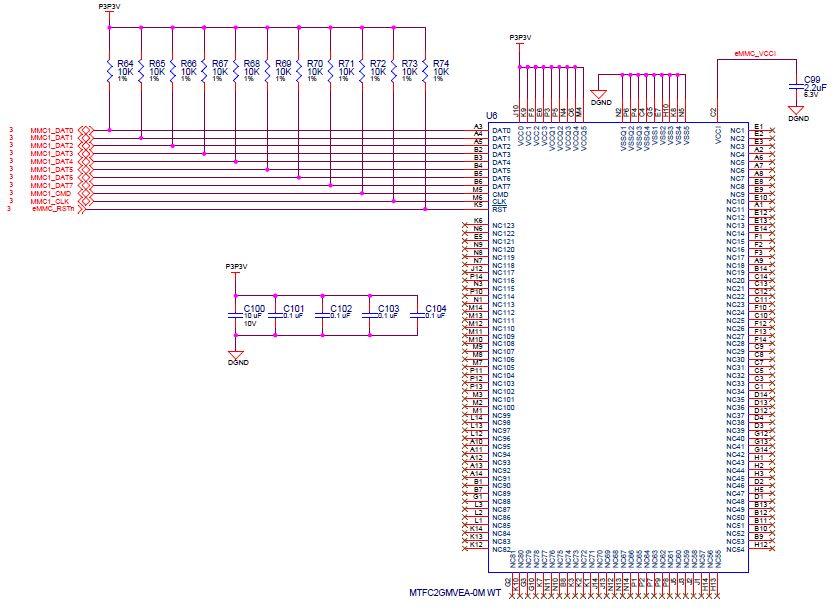

eMCC Flash (Sheet 9 of 32)
Ethernet (Sheet 10 of 32)
Temperature Sensor, uSD, Detector, Daughter Connector (Sheet 11 of 32)

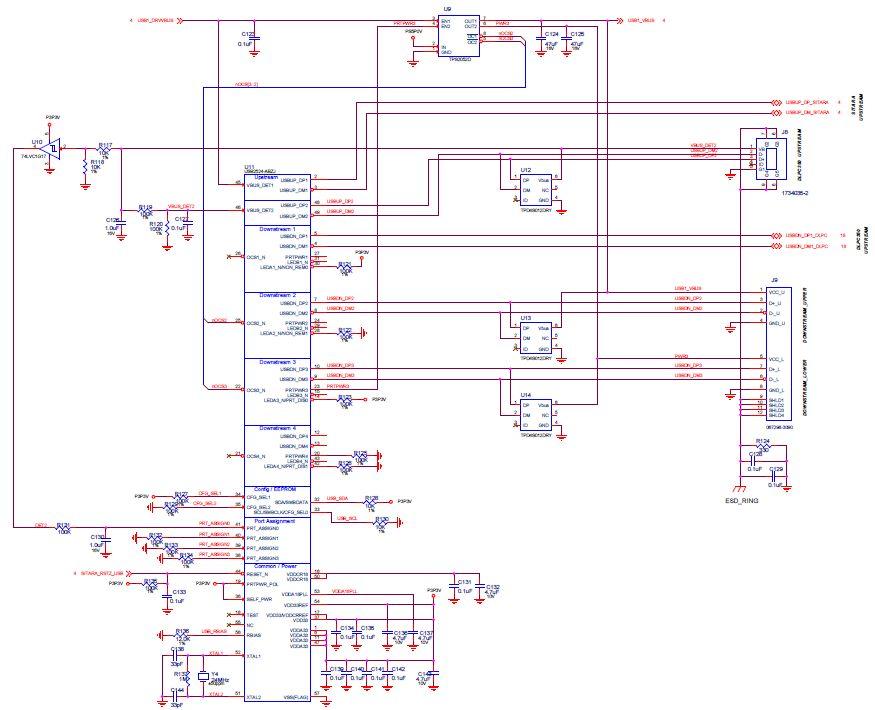

USB HUB (Sheet 12 of 32)
Front End Interface (Sheet 13 of 32)
Trigger Block Diagram (Sheet 14 of 32)
Trigger Input (Sheet 15 of 32)
Trigger Output (Sheet 16 of 32)
Flash Memory Interface (Sheet 17 of 32)
GPIO, I2C (Sheet 18 of 32)
USB PORT (Sheet 19 of 32)
JTAG Boundary Scan and Reset (Sheet 20 of 32)
DLPC350 Power and Bypass Capacitors (Sheet 21 of 32)
Power Supply Block Diagram (Sheet 22 of 32)
Input Power and Oscillator Input (Sheet 23 of 32)
Fan, 5.0V, 3.3V Power Supplies (Sheet 24 of 32)
Sitara Power Supplies (Sheet 25 of 32)
DLPC350 Power Supplies (Sheet 26 of 32)
DMD Power Supplies (Sheet 27 of 32)
DMD Hard Board Interface (Sheet 28 of 32)
ESD, NIRscan Detector, Amplifier, ADS (Sheet 29 of 32)
ESD, NIRscan S241 DMD Board (Sheet 30 of 32)
ESD, NIRscan TEC Driver Board (Sheet 31 of 32)
ESD, NIRscan Lamp Driver Board (Sheet 32 of 32)
Image 1 / 32

Manufacturer

Texas Instruments
  • Application Category
    Sensors and Transducers
  • Product Type
    Infrared Proximity Sensor

Associated Documents

For End Products

  • Food Processor
  • Medical and Healthcare
  • Solid state lighting

Description

  • TIDA-00155, DLP Near-Infrared Spectrometer for Optical Analysis of Liquids and Solids. This near-infrared (NIR) spectrometer reference design utilizes DLP technology in conjunction with a single-element In GaAs detector to deliver high performance measurements in a portable form factor that is more affordable than expensive In GaAs array detector or fragile rotating grating architectures. NIR spectrometers are commonly used to analyze organic-based liquids and solids for applications including food, agriculture, pharmaceuticals, petrochemicals and plastics to name a few

Key Features

  • Signal Conditioning Type
    Amplification

Featured Parts (59)

Featured Parts
Part Number Manufacturer Type Description
TPS79733DCKT Texas Instruments Linear Regulators LDO Regulator Pos 3.3V 0.05A 5-Pin SC-70 T/R Buy
SN74AVC2T45DCUR Texas Instruments Level Translators Voltage Level Translator 2-CH Bidirectional 8-Pin VSSOP T/R Buy
TLV62130RGTR Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 3V to 17V Synchronous Step Down Single-Out 0.9V to 5V 3A 16-Pin VQFN EP T/R Buy
TPS65251RHAR Texas Instruments PMIC Solutions Conv DC-DC 4.5V to 18V Synchronous Step Down Triple-Out 0.8V to 17V 3A/2A/2A 40-Pin VQFN EP T/R Buy
SN74HC21PWR Texas Instruments Logic Gates AND Gate 2-Element 4-IN CMOS 14-Pin TSSOP T/R Buy
REF5050AQDRQ1 Texas Instruments Voltage References V-Ref Precision 5V 10mA Automotive AEC-Q100 8-Pin SOIC T/R Buy
LAN8710A-EZC Microchip Technology PHY PHY 1-CH 10Mbps/100Mbps 2.5V/3.3V 32-Pin VQFN EP Tray Buy
TPS71733DCKR Texas Instruments Linear Regulators LDO Regulator Pos 3.3V 0.15A 5-Pin SC-70 T/R Buy
OPA350EA/250 Texas Instruments Operational Amplifiers - Op Amps Op Amp Single Precision Amplifier R-R I/O ±2.75V/5.5V 8-Pin VSSOP T/R Buy
OPA350EA/2K5 Texas Instruments Operational Amplifiers - Op Amps Op Amp Single Precision Amplifier R-R I/O ±2.75V/5.5V 8-Pin VSSOP T/R Buy
OPA2376AID Texas Instruments Operational Amplifiers - Op Amps Op Amp Dual Precision Amplifier R-R I/O ±2.75V/5.5V 8-Pin SOIC Tube Buy
OPA340NA/3K Texas Instruments Operational Amplifiers - Op Amps Op Amp Single Precision Amplifier R-R I/O 5.5V 5-Pin SOT-23 T/R Buy
