TIDA-00449, 10s Battery Pack Monitoring, Balancing and Protection Reference Design
Texas Instruments の部品 BQ7693003DBT を使用したリファレンス デザイン
画像
1 / 5
最終製品向け
- Battery Powered Instrument
- Garden Tools
- Power Tool
- Robots
説明

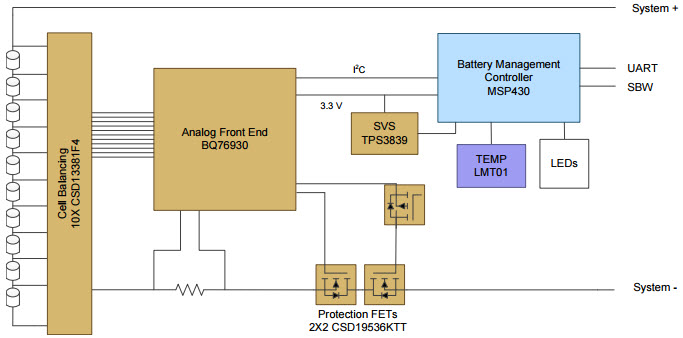

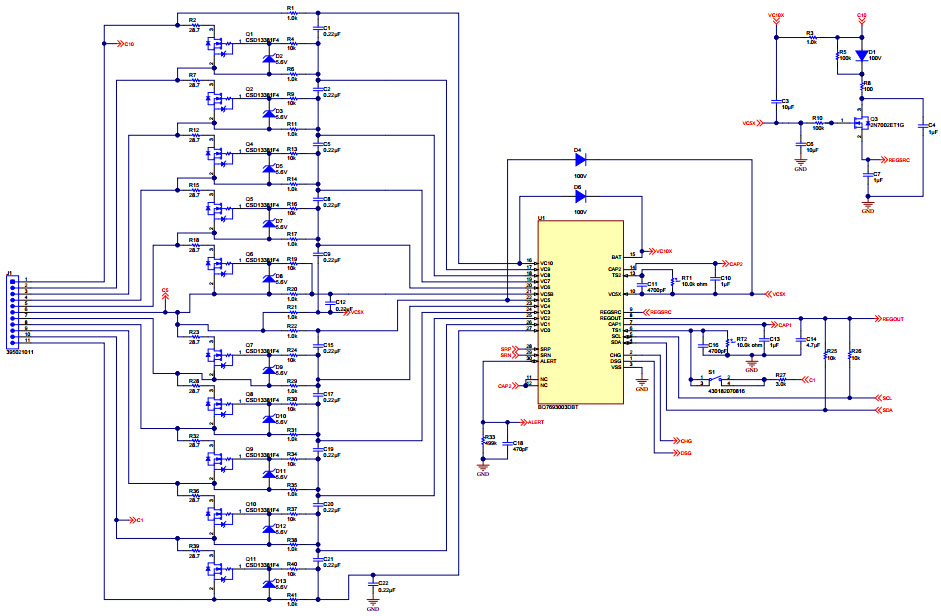

- TIDA-00449, 10s Battery Pack Monitoring, Balancing and Protection Reference Design. The Design TIDA-00449 is a ready, tested hardware platform for 10 cells in series Battery Pack Monitoring, Balancing and Protection for Power Tools. Power Tools increasingly uses highly power dense Li-Ion or Li-Iron Phosphate cells based battery packs that need to be protected from explosion due to incorrect charging or discharging. The TIDA-00449 also achieves thermal requirements for power tool battery packs when discharging at high continuous current
主な特徴
-
Battery TypeLithium-Ion|Lithium-Iron
-
Output Voltage36 V
-
Number of Battery Cells10
注目のパーツ (4)
| 部品番号 | メーカー | タイプ | 説明 | |||
|---|---|---|---|---|---|---|
|
MSP430G2553IPW20 | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 16KB Flash 2.5V/3.3V 20-Pin TSSOP Tube | 買う | |
|
LMT01LPG | Texas Instruments | Temperature and Humidity Sensors | Temperature Sensor Digital Serial (1-Wire) 2-Pin TO-92 Bulk | 買う | |
|
TPS3839G33DBZR | Texas Instruments | Supervisory Circuits | Processor Supervisor 3.08V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R | 買う | |
|
BQ7693003DBT | Texas Instruments | Battery Management ICs | Battery Balancer/Battery Monitoring Li-FePO4/Li-Ion 30-Pin TSSOP Tube | 買う | |
