TIDA-00379, 110-VAC to 5-VDC @ 30-mA Non-Isolated Power Supply Reference Design
Texas Instruments이 부품 UCC28880DR 을 사용하는 참조 설계
이미지
1 / 3
최종 제품의 경우
- Power Supplies
Description

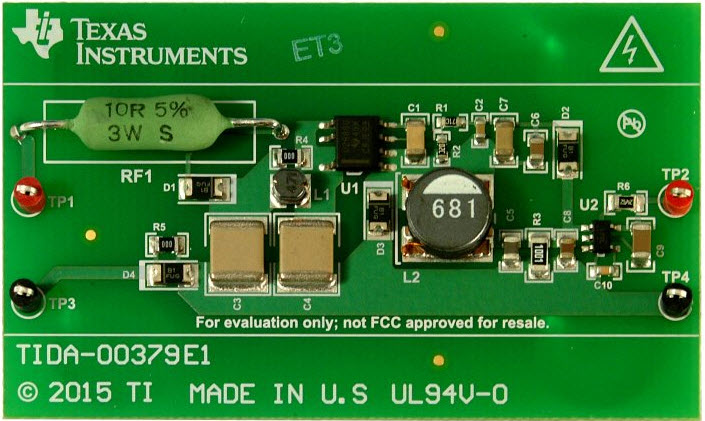

- TIDA-00379, 110-VAC to 5-VDC @ 30-mA Non-Isolated Power Supply Reference Design. The 110-VAC to 5-VDC @ 30-mA Non-Isolated Power Supply Design uses a low-power, low-cost, off-line buck converter and a low-noise, low-dropout voltage regulator to generate a non-isolated 5V/30mA output directly from a 110-VAC line input with under 10-mV output ripple across no-load and full-load conditions. Off-line converters are powered directly from the AC line by using a rectifier and capacitive filter and do not require a large 60-Hz transformer, thereby eliminating the heaviest and costliest component of a typical transformer-based power supply
최종 제품의 경우
-
Conversion TypeAC to DC
-
Input Voltage85 to 130 (AC) V
-
Output Voltage5 V
-
Output Current0.03 A
-
TopologyBuck
피쳐링 부품 (1)
| 부품 번호 | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
LP2985-50DBVR | Texas Instruments | Linear Regulators | LDO Regulator Pos 5V 0.15A 5-Pin SOT-23 T/R | 구매 | |
