ADA8282CP-EBZ, Evaluation Board for Evaluating the ADA8282 Radar Receive Path AFE

Reference Design using part ADA8282WBCPZ by Analog Devices

Enlarge

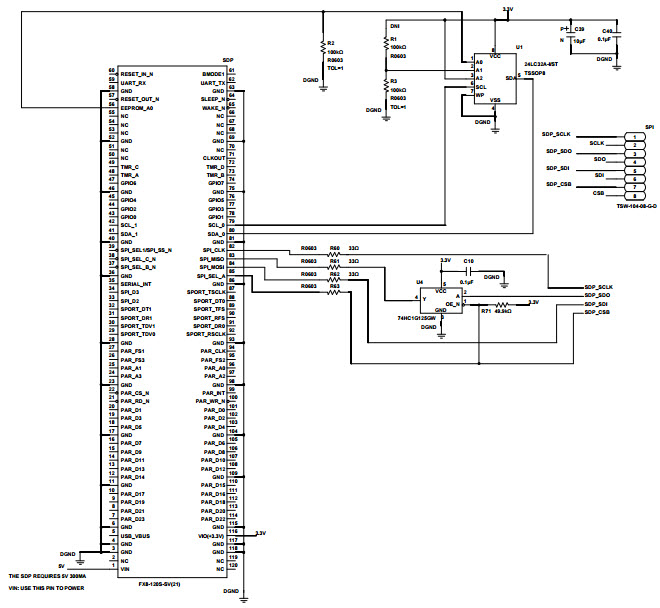

ADA8282CP-EBZ Image (Sheet 1 of 6)
Input Schematic (Sheet 2 of 6)

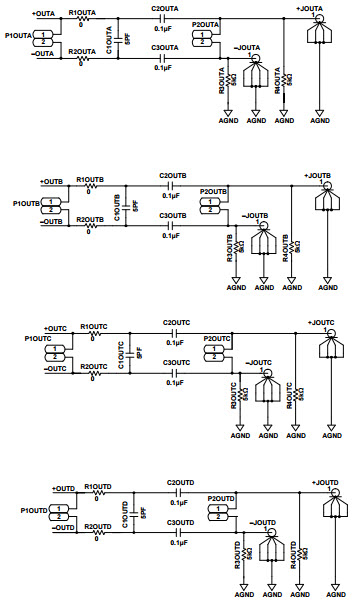

Output Schematic (Sheet 3 of 6)
DUT Schematic (Sheet 4 of 6)
Power Section Schematic (Sheet 5 of 6)
Ring Connectors (Sheet 6 of 6)
Image 1 / 6

Manufacturer

Analog Devices
  • Application Category
    Amplifiers and Comparators
  • Product Type
    Analog Amplification
Buy

For End Products

  • Radar System

Description

  • ADA8282CP-EBZ, Evaluation Board is designed to aid in the evaluation of the ADA8282 radar receive path analog front-end (AFE). The board connects to the system demonstration platform (SDP) for easy configuration of registers through a serial peripheral interface (SPI) using the ACE evaluation software. The board provides headers to allow configuration using other platforms

Featured Parts (5)

Featured Parts
Part Number Manufacturer Type Description
24LC32A-I/ST Microchip Technology EEPROM EEPROM Serial-I2C 32K-bit 4K x 8 3.3V/5V 8-Pin TSSOP Tube Buy
ADP7118ARDZ-3.3 Analog Devices Linear Regulators LDO Regulator Pos 3.3V 0.2A 8-Pin SOIC N EP Tube Buy
NFM21PC105B1C3B Murata Manufacturing Capacitor Feed Through Feedthrough Capacitor Buy
ADP7105ARDZ-5.0 Analog Devices Linear Regulators LDO Regulator Pos 5V 0.5A 8-Pin SOIC N EP Tube Buy
ADA8282WBCPZ Analog Devices Special Purpose Amplifiers SP Amp Variable Gain Amp Quad 3.6V Automotive AEC-Q100 32-Pin LFCSP EP Tray Buy
