High density dual motor control demonstration board based on the STM32F103ZE microcontroller

Reference Design using part STM32F103ZET6 by STMicroelectronics

Enlarge
STEVAL-IHM022V1 Image (Sheet 1 of 11)
STM32F103ZE microcontroller (Sheet 2 of 11)
Extension and I2C connectors (Sheet 3 of 11)
Joystick, buttons and LCD connections (Sheet 4 of 11)
JTAG and trace connectors (Sheet 5 of 11)
Motor control connector main (Sheet 6 of 11)
Motor control connector sub1 (Sheet 7 of 11)
Motor control connector sub2 (Sheet 8 of 11)
Peripherals (Sheet 9 of 11)

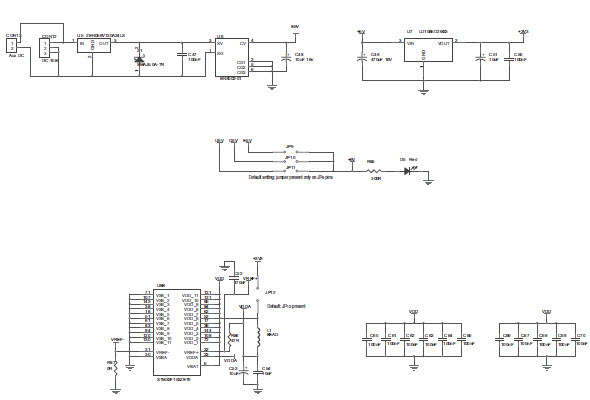

Power Supply (Sheet 10 of 11)
RS-232 connectors (Sheet 11 of 11)
Image 1 / 11

Manufacturer

STMicroelectronics
  • Application Category
    Embedded System
  • Product Type
    Microcontroller
Buy

For End Products

  • Motion Motor Control

Description

  • STEVAL-IHM022V1 demonstration board is designed as a dual motor control development platform for ARM Cortex-M3 core-based STM32F103ZE microcontroller. The board features full speed USB 2.0 and CAN2.0 A/B compliant interfaces, 2 I2S channels, 2 I2C channels, 5 USART channels, 3 SPI channels, 2 DAC channels, internal 64 Kb SRAM and 512 Kb Flash memory and JTAG and SWD debugging support

Key Features

  • Embedded System Type
    MCU
  • Family Name
    STM32
  • Core Processor
    ARM Cortex-M3

Featured Parts (10)

Featured Parts
Part Number Manufacturer Type Description
SN65HVD230DRG4 Texas Instruments Controller Area Network - CAN Transceivers CAN 1Mbps Standby 3.3V 8-Pin SOIC T/R Buy
LD1086D2M33TR STMicroelectronics Linear Regulators LDO Regulator Pos 3.3V 1.5A 4-Pin(3+Tab) D2PAK/A T/R Buy
ST3232EBTR STMicroelectronics Bus Line Transceivers Dual Transmitter/Receiver RS-232 16-Pin TSSOP T/R Buy
SN65HVD230QDRG4Q1 Texas Instruments Controller Area Network - CAN Transceivers CAN 1Mbps Standby 3.3V Automotive AEC-Q100 8-Pin SOIC T/R Buy
SN65HVD230QDR Texas Instruments Controller Area Network - CAN Transceivers CAN 1Mbps Standby 3.3V 8-Pin SOIC T/R Buy
SN65HVD230DR Texas Instruments Controller Area Network - CAN Transceivers CAN 1Mbps Standby 3.3V 8-Pin SOIC T/R Buy
SN65HVD230DR-906303111 Texas Instruments Controller Area Network - CAN Transceivers CAN 1Mbps Standby 3.3V 8-Pin SOIC T/R Buy
SN65HVD230QDG4Q1 Texas Instruments Controller Area Network - CAN Transceivers CAN 1Mbps Standby 3.3V 8-Pin SOIC Tube Automotive AEC-Q100 Buy
STM32F103ZET6TR STMicroelectronics Microcontrollers - MCUs MCU 32-bit ARM Cortex M3 RISC 512KB Flash 2.5V/3.3V 144-Pin LQFP T/R Buy
STM32F103ZET6 STMicroelectronics Microcontrollers - MCUs MCU 32-bit ARM Cortex M3 RISC 512KB Flash 2.5V/3.3V 144-Pin LQFP Tray Buy
