TIDA-00068, Base-Station Transceiver with DPD Feedback Path

Reference Design using part DAC3484IRKD by Texas Instruments

Enlarge
DAC PWR (Sheet 1 of 30)
MULTI-FREQ DAC (Sheet 2 of 30)
MULTI-FREQ MODULATOR (Sheet 3 of 30)
MULTI-FREQ MODULATOR (Sheet 4 of 30)
DAC/TX POWER (Sheet 5 of 30)
RF CHAIN (Sheet 6 of 30)
ADS4249 (Sheet 7 of 30)
BUFFERS (Sheet 8 of 30)
MAIN POWER & HARDWARE (Sheet 9 of 30)
FEEDBACK PATH (Sheet 10 of 30)
RX & FEEDBACK POWER (Sheet 11 of 30)
GC5330 CONNECTOR (Sheet 12 of 30)
CDCE72010 (Sheet 13 of 30)
CDCD72010 (Sheet 14 of 30)
FPGA (Sheet 15 of 30)
FB PATH MODULATOR (Sheet 16 of 30)
MODULATOR (Sheet 17 of 30)
RX PATH MODULATOR (Sheet 18 of 30)
TRF3720 & LO AMP POWER (Sheet 19 of 30)
FPGA POWER (Sheet 20 of 30)
LT5557 & PGA870-1 (Sheet 21 of 30)

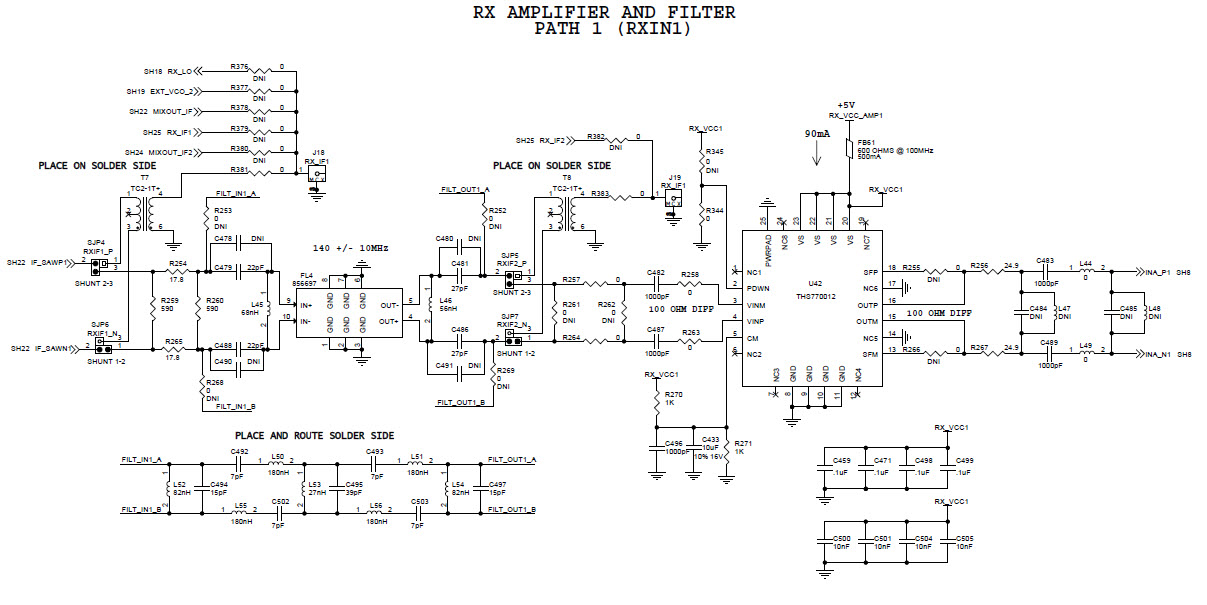

THS7700 & 856697-1 (Sheet 22 of 30)

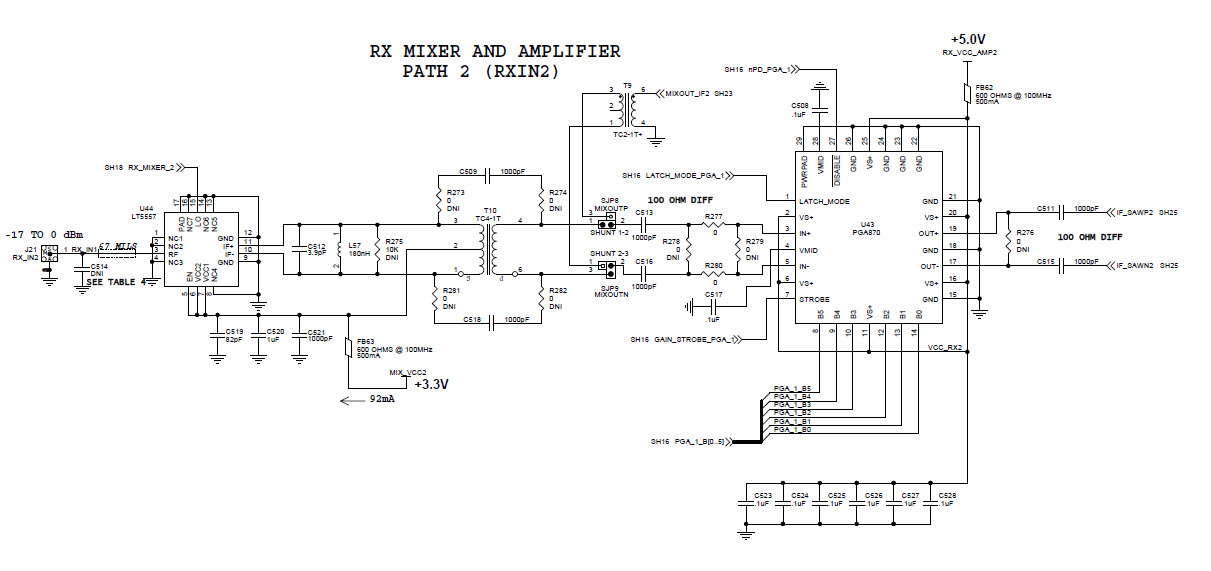

LT5557 & PGA870-2 (Sheet 23 of 30)
THS7700 & 856697-2 (Sheet 24 of 30)
IF DRIVERS & DEMODULATOR (Sheet 25 of 30)
DEMODULATOR (Sheet 26 of 30)
FEEDBACK POWER (Sheet 27 of 30)
FPGA SPECIAL BANK & PA CONN (Sheet 28 of 30)
FPGA-POWER (Sheet 29 of 30)
FPGA USB I/F (Sheet 30 of 30)
Image 1 / 30

Manufacturer

Texas Instruments
  • Application Category
    Data Conversion
  • Product Type
    Digital to Analog Conversion

Associated Documents

For End Products

  • Access Control
  • Industrial
  • Wireless Infrastructure

Description

  • TIDA-00068, the design is for a small cell base station development platform. It provides two real receive paths, two complex transmit paths, and a shared real feedback path. This design has macro Base-Station performance, but with small cell base station footprint. The current design handles up to 20MHz of bandwidth

Key Features

  • DAC Resolution
    16 Bit
  • DAC Sampling Rate
    1.25G SPS
  • Number of Channels
    4CH

Featured Parts (38)

Featured Parts
Part Number Manufacturer Type Description
PGA870IRHDT Texas Instruments Special Purpose Amplifiers SP Amp DIFF AMP Single 5.25V 28-Pin VQFN EP T/R Buy
TPS76750QPWPR Texas Instruments Linear Regulators LDO Regulator Pos 5V 1A 20-Pin HTSSOP EP T/R Buy
TPS62420DRCTG4 Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.5V to 6V Synchronous Step Down Dual-Out 0.6V to 6V 0.6A/1A 10-Pin VSON EP T/R Buy
TPS79633DCQR Texas Instruments Linear Regulators LDO Regulator Pos 3.3V 1A 6-Pin(5+Tab) SOT-223 T/R Buy
CDCE72010RGCTG4 Texas Instruments Clock Generators and Synthesizers Clock Generator MHz to 500MHz-IN 1500MHz-OUT 64-Pin VQFN EP T/R Buy
EP4CE10F17I8LN Intel Field Programmable Gate Arrays - FPGAs FPGA Cyclone® IV E Family 10320 Cells 60nm Technology 1.2V 256-Pin FBGA Tray Buy
TPS73533DRBT Texas Instruments Linear Regulators LDO Regulator Pos 3.3V 0.5A 8-Pin VSON EP T/R Buy
PGA870IRHDR Texas Instruments Special Purpose Amplifiers SP Amp DIFF AMP Single 5.25V 28-Pin VQFN EP T/R Buy
TPS2400DBVTG4 Texas Instruments Hot Swap Controllers Hot Swap Controller 1-CH 6.8V N-Channel Positive Voltage 5-Pin SOT-23 T/R Buy
TPS7A8001DRBT Texas Instruments Linear Regulators LDO Regulator Pos 0.8V to 6V 1A 8-Pin VSON EP T/R Buy
TPS71733DCKR Texas Instruments Linear Regulators LDO Regulator Pos 3.3V 0.15A 5-Pin SC-70 T/R Buy
SN74AVC16T245DGG Texas Instruments Level Translators Voltage Level Translator 16-CH Bidirectional 48-Pin TSSOP Tube Buy
