TIDEP0035, ARM MPU with Integrated HIPERFACE DSL Master Interface Reference Design

Reference Design using part AM4379BZDN by Texas Instruments

Enlarge
TIDEP0035 Reference Design Image (Sheet 1 of 22)
TIDEP0035 Reference Design Block Diagram (Sheet 2 of 22)
Sitara AM437x with HIPERFACE DSL Position FB Block Diagram (Sheet 3 of 22)
Warm Reset Switch (Sheet 4 of 22)
Sitara AM437x Schematic (Sheet 5 of 22)
Main 24VDC Power Input (Sheet 6 of 22)
AM437x QSPI NOR Memory (Sheet 7 of 22)
AM437x DDR SDRAM (Sheet 8 of 22)
MDIO Address (Sheet 9 of 22)
MDIO Address (Sheet 10 of 22)
LED0, LED1 (Sheet 11 of 22)
SD/MMC0 Connector (Sheet 12 of 22)
KSZ9031 Schematic (Sheet 13 of 22)
SN74LVC8T245 Schematic (Sheet 14 of 22)
Industrial INPUTS, Digital OUTPUTS, I/O Expansion Header (Sheet 15 of 22)
Motor Drive, Motor 24VDC Power Input (Sheet 16 of 22)
Motor Winding (Sheet 17 of 22)
SN74LVC8T245 Schematic (Sheet 18 of 22)
Boot Configuration (Sheet 19 of 22)
USB JTAG (Sheet 20 of 22)
Expansion Connector (Sheet 21 of 22)
SN74LVC1G07 Schematic (Sheet 22 of 22)
Image 1 / 22

Manufacturer

Texas Instruments
  • Application Category
    Embedded System
  • Product Type
    Application Processor

Associated Documents

For End Products

  • AC Drives
  • Elevator
  • Motion Control
  • Position Control
  • Robotics
  • Servo Drives

Description

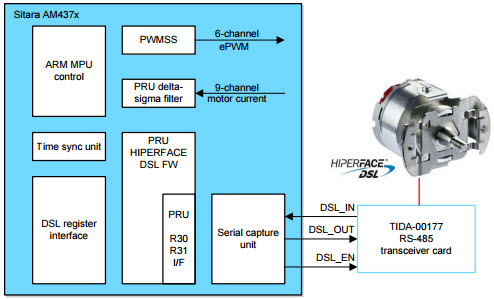

  • TIDEP0035, ARM MPU with Integrated HIPERFACE DSL Master Interface Reference Design. Implementation of HIPERFACE DSL Master protocol on Industrial Communication Sub-System (PRU-ICSS). The two wire interface allows for integration of position feedback wires into motor cable. Complete solution consists of AM437x PRU-ICSS firmware and TIDA-00177 transceiver reference design

Key Features

  • Embedded System Type
    SoC
  • Family Name
    Sitara AM437x

Featured Parts (84)

Featured Parts
Part Number Manufacturer Type Description
AM4376BZDN100 Texas Instruments Microprocessors - MPUs MPU AM437x RISC 32bit 1GHz 491-Pin NFBGA Tray Buy
AM4378BZDN100 Texas Instruments Microprocessors - MPUs MPU AM437x RISC 32bit 1GHz 491-Pin NFBGA Tray Buy
AM4378BZDNA80 Texas Instruments Microprocessors - MPUs MPU AM437x RISC 32bit 800MHz 491-Pin NFBGA Tray Buy
93LC56B-I/SN Microchip Technology EEPROM EEPROM Serial-Microwire 2K-bit 128 x 16 3.3V/5V 8-Pin SOIC N Tube Buy
LM4132CMF-1.8/NOPB Texas Instruments Voltage References V-Ref Precision 1.8V 20mA Medical 5-Pin SOT-23 T/R Buy
SN74AVC1T45DCKT Texas Instruments Level Translators Voltage Level Translator 1-CH Bidirectional 6-Pin SC-70 T/R Buy
SN74AVC1T45DCKR Texas Instruments Level Translators Voltage Level Translator 1-CH Bidirectional 6-Pin SC-70 T/R Buy
TPS62362YZHR Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.5V to 5.5V Synchronous Step Down Single-Out 0.77V to 1.4V 3A 16-Pin DSBGA T/R Buy
KSZ9031RNXIA-TR Microchip Technology PHY PHY 1-CH 10Mbps/100Mbps/1Gbps 1.8V/2.5V/3.3V 48-Pin QFN EP T/R Buy
KSZ9031RNXIC Microchip Technology PHY PHY 1-CH 10Mbps/100Mbps/1Gbps 1.8V/2.5V/3.3V 48-Pin VQFN EP Tray Buy
SN74AVC4T245PW Texas Instruments Level Translators Voltage Level Translator 4-CH Bidirectional 16-Pin TSSOP Tube Buy
AM4376BZDNA80 Texas Instruments Microprocessors - MPUs MPU AM437x RISC 32bit 800MHz 491-Pin NFBGA Tray Buy
