CC2531EM-IOT-LIGHTING-GATEWAY-RD, Residential lighting gateway reference system for Internet of Things (IoT) applications
Diseño de referencia usando la pieza CC2531F128RHA de Texas Instruments
이미지
1 / 7
Para productos finales
- Cellular Phone
- IoT Applications
- Lighting
- Remote Control
- Set-Top Box
- Tablet
- Wireless
Descripción

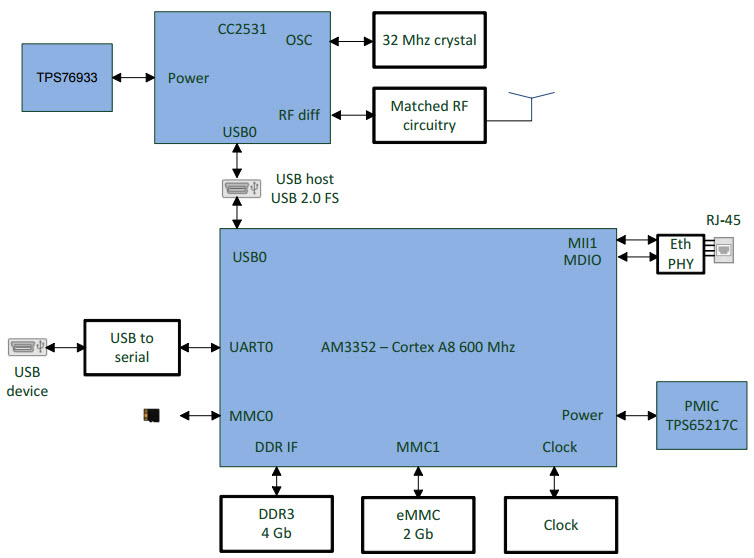

- CC2531EM-IOT-LIGHTING-GATEWAY-RD, Residential lighting gateway reference system for IoT applications. This design provides a reference ZigBee gateway for IoT lighting applications. Feature-rich, Linux-based Network/GUI applications powered by Sitara AM335x processor can control and monitor ZigBee lighting nodes using the SimpleLink ZigBee CC2531 wireless MCU. This design includes example applications for local and remote control of ZigBee nodes, including android (phones/tablets/set top boxes), Java-script for cloud connectivity agents and C-clients
Piezas destacadas (30)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
NX3225SA-28.63636M-STD-CSR-3 | NIHON DEMPA KOGYO CO., LTD | Crystals | Crystal 28.63636MHz ±15ppm (Tol) ±15ppm (Stability) 8pF FUND 50Ohm 4-Pin SMD | AÑADIR AL CARRITO | |
|
|
NX3225SA 24.000MHz STD-CSR-6 | NIHON DEMPA KOGYO CO., LTD | Crystals | Crystal 24MHz ±15ppm (Tol) ±25ppm (Stability) 8pF FUND 50Ohm 4-Pin SMD Automotive AEC-Q200 | AÑADIR AL CARRITO | |
|
|
NX3225SA16.000MSTDCSR1 | NIHON DEMPA KOGYO CO., LTD | Crystals | Crystal 16MHz ±15ppm (Tol) ±15ppm (Stability) 8pF FUND 80Ohm 4-Pin SMD | AÑADIR AL CARRITO | |
|
|
NX3225SA16.000MSTDCRS2 | NIHON DEMPA KOGYO CO., LTD | Crystals | Crystal 16MHz ±50ppm (Tol) ±150ppm (Stability) 8pF FUND 300Ohm 4-Pin SMD Automotive AEC-Q200 | AÑADIR AL CARRITO | |
|
|
NX3225SA-12MHZ-STD-CSR-3 | NIHON DEMPA KOGYO CO., LTD | Crystals | Crystal 12MHz ±15ppm (Tol) ±15ppm (Stability) 8pF FUND 100Ohm Automotive AEC-Q200 4-Pin SMD | AÑADIR AL CARRITO | |
|
|
NX3225SA26.000000MHZG2 | NIHON DEMPA KOGYO CO., LTD | Crystals | Crystal 26MHz ±10ppm (Tol) ±11ppm (Stability) 10pF FUND 50Ohm 4-Pin SMD | AÑADIR AL CARRITO | |
|
|
NX3225SA26.000000MHZB1 | NIHON DEMPA KOGYO CO., LTD | Crystals | Crystal 26MHz ±10ppm (Tol) ±10ppm (Stability) 10pF FUND 50Ohm 4-Pin SMD | AÑADIR AL CARRITO | |
|
|
NX3225SA20.000MSTDCSR1 | NIHON DEMPA KOGYO CO., LTD | Crystals | Crystal 20MHz ±15ppm (Tol) ±15ppm (Stability) 8pF FUND 50Ohm 4-Pin SMD | AÑADIR AL CARRITO | |
|
|
NX3225SA-25.000M-STD-CSR-3 | NIHON DEMPA KOGYO CO., LTD | Crystals | Crystal 25MHz ±15ppm (Tol) ±15ppm (Stability) 8pF FUND 50Ohm Automotive AEC-Q200 4-Pin SMD | AÑADIR AL CARRITO | |
|
|
NX3225SA 26.000MHz STD-CSR-6 | NIHON DEMPA KOGYO CO., LTD | Crystals | Crystal 26MHz ±15ppm (Tol) ±25ppm (Stability) 8pF FUND 50Ohm 4-Pin SMD Automotive AEC-Q200 | AÑADIR AL CARRITO | |
|
TPS76933DBVRG4 | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.1A 5-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
|
|
NX3225SA-12.000M-STD-CSR-3 | NIHON DEMPA KOGYO CO., LTD | Crystals | Crystal 12MHz ±15ppm (Tol) ±15ppm (Stability) 8pF FUND 100Ohm Automotive AEC-Q200 4-Pin SMD | AÑADIR AL CARRITO | |
