Dual Channel Data Acquisition System for Optical Encoders, 12 Bit, 1MSPS
Diseño de referencia usando la pieza SN74LVC1T45DBVR de Texas Instruments
이미지
1 / 4
Documentos asociados
Para productos finales
- Induction Motor
- Industrial
Descripción

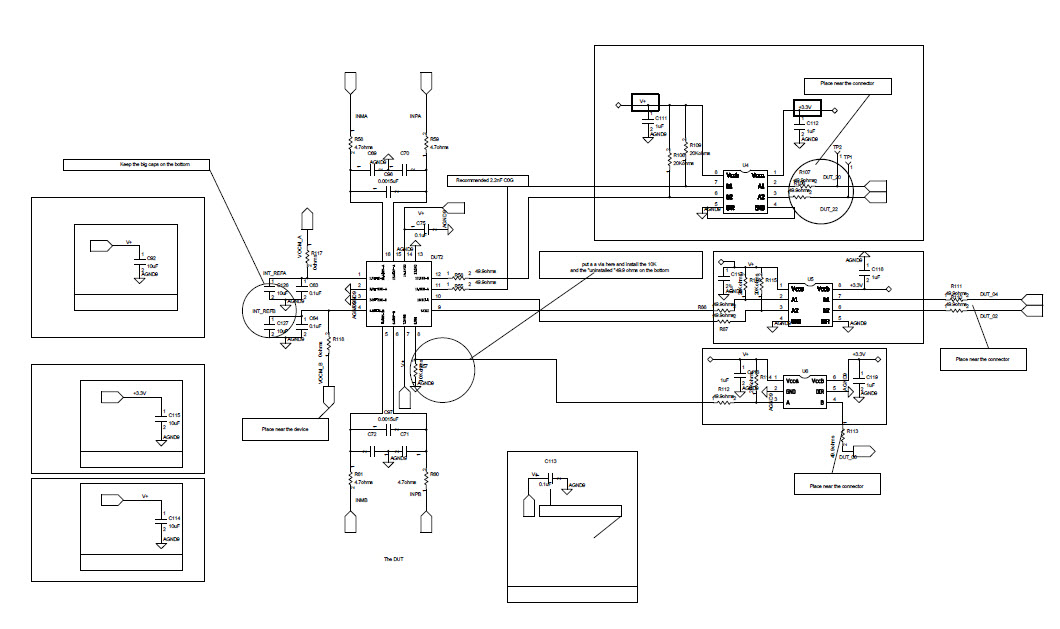

- TI Precision Verified Design provides theory, component selection, simulation, PCB design, and measurement details for a 12-bit 1-MSPS single supply dual channel simultaneous data acquisition system. This circuit achieves 73 dB SINAD for a 4.5 V differential signal at 2 KHz input frequency. Differential input may have a wide range of common mode voltage. Circuit includes a low impedance buffer, low pass RC filter and 12 bit, Dual, Simultaneous Sampling SAR ADC with internal reference voltage source
Piezas destacadas (7)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
SN74LVC2T45DCTRE4 | Texas Instruments | Level Translators | Voltage Level Translator 2-CH Bidirectional 8-Pin SSOP T/R | AÑADIR AL CARRITO | |
|
|
SN74LVC2T45DCTTG4 | Texas Instruments | Level Translators | Voltage Level Translator 2-CH Bidirectional 8-Pin SSOP T/R | AÑADIR AL CARRITO | |
|
|
SN74LVC2T45DCTR | Texas Instruments | Level Translators | Voltage Level Translator 2-CH Bidirectional 8-Pin SSOP T/R | AÑADIR AL CARRITO | |
|
|
SN74LVC2T45DCTT | Texas Instruments | Level Translators | Voltage Level Translator 2-CH Bidirectional 8-Pin SSOP T/R | AÑADIR AL CARRITO | |
|
SN74LVC1T45DBVRG4 | Texas Instruments | Level Translators | Voltage Level Translator 1-CH Bidirectional 6-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
|
|
SN74LVC1T45DBVRE4 | Texas Instruments | Level Translators | Voltage Level Translator 1-CH Bidirectional 6-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
|
|
SN74LVC1T45DBVR | Texas Instruments | Level Translators | Voltage Level Translator 1-CH Bidirectional 6-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
