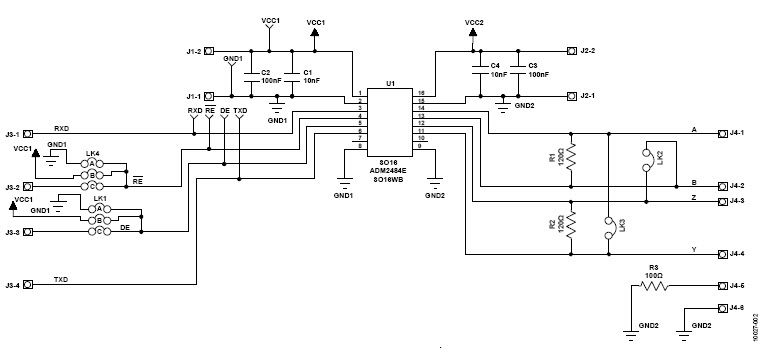

EVAL-ADM2484EEBZ, Evaluation Board for 3.3,5V RS-485 Transceiver for Industrial Networking
Diseño de referencia usando la pieza ADM2484EBRWZ de Analog Devices
이미지
1 / 2
Documentos asociados
Para productos finales
- Industrial Networking
Descripción
- EVAL-ADM2484EEBZ, Evaluation Board for 3.3,5V RS-485 Transceiver for Industrial Networking. The Evaluation Board for the ADM2484E 5 kV Signal Isolated, ESD Protected, 500 kbps, Half-/Full Duplex, iCoupler, Isolated RS-485 Transceiver
Características clave
-
Interface StandardsRS-485|RS-422
-
Data Rate0.5 Mbps
-
Supply VoltageDual(3.3,5) V
-
FunctionsLine Transceiver
Piezas destacadas (2)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
ADM2484EBRWZ | Analog Devices | Bus Line Transceivers | Single Transmitter/Receiver RS-422/RS-485 16-Pin SOIC W Tube | AÑADIR AL CARRITO | |
|
|
ADM2484EBRWZ-REEL7 | Analog Devices | Bus Line Transceivers | Single Transmitter/Receiver RS-422/RS-485 16-Pin SOIC W T/R | AÑADIR AL CARRITO | |
