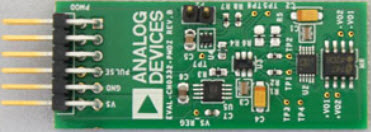

EVAL-CN0332-PMDZ, Evaluation Board based on ADA4897-2 Magneto resistive (MR) Rotational Speed Sensor
Diseño de referencia usando la pieza ADA4897-2ARMZ de Analog Devices
이미지
1 / 2
Documentos asociados
Para productos finales
- Automotive Applications
- Avionics
- Building Automation
- Industrial Applications
- Robotics
Descripción
- EVAL-CN0332-PMDZ, Evaluation Board for the ADA4897-2 is a single-supply, low cost, high-speed magneto resistive (MR) signal conditioner with a minimum PCB footprint. The complete signal conditioning solution amplifies the small output voltage of the magneto resistive sensor and converts it into a digital output signal with a rise and fall time of less than 5 ns and an rms jitter of approximately 100 ps. The circuit provides a compact and cost effective robust solution for high speed rotational sensing in industrial and automotive applications and is an excellent alternative to Hall effect sensors
