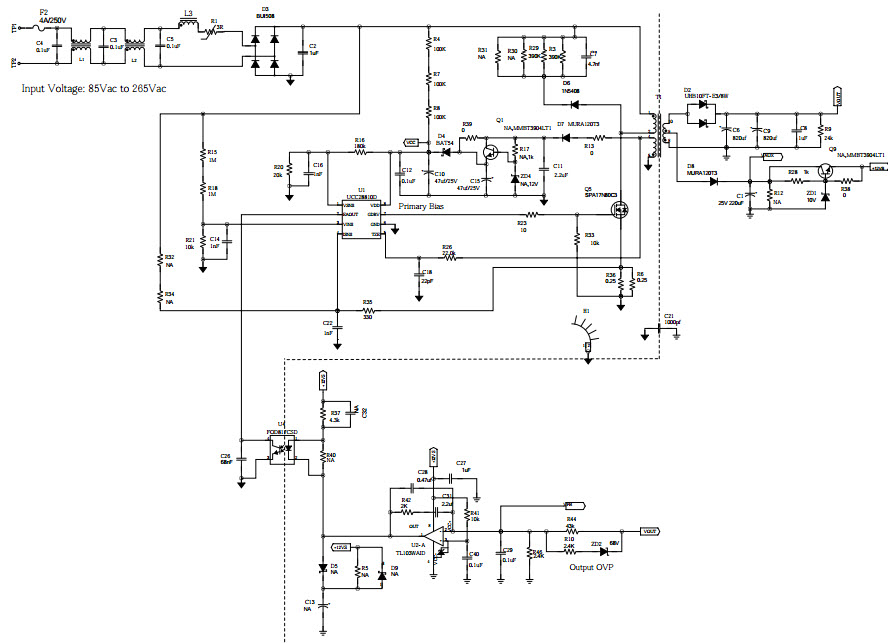

PMP4334, 110W AC input 6-channel dimmable LED driver with DHC feature
Diseño de referencia usando la pieza UCC28810D de Texas Instruments
이미지
1 / 2
Documentos asociados
Para productos finales
- Industrial HB LED Lighting
- LED Lighting
- Residential Lighting
- Street LED Lighting
Descripción
- PMP4334, is the combo solution that provides single stage PFC and 6-channel LED drivers total solution with 110W output power. It delivers 350mA/channel with typical 50V output voltage. Overall PF > 0.95 is achieved with the help of TM PFC UCC28810. Dynamic headroom control (DHC) feature of LM3463 controls DC input from UCC28810 and achieves high efficiency > 90% over wide range. It also presents good dimming linearity and accuracy. PMP4334 provides the dimming interface which can also support wireless dimming mode
Características clave
-
Output Voltage50 V
-
Output Current0.35 A
-
Output Power110 W
-
Number of Derived Elements6
Piezas destacadas (10)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
LM3463SQ/NOPB | Texas Instruments | LED Drivers | LED Driver 15V/18V/24V 48-Pin WQFN EP T/R | AÑADIR AL CARRITO | |
|
|
LM3463SQX/NOPB | Texas Instruments | LED Drivers | LED Driver 15V/18V/24V 48-Pin WQFN EP T/R | AÑADIR AL CARRITO | |
|
FOD817CSD | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD T/R | AÑADIR AL CARRITO | |
|
|
LM3463SQ/NOPB | Texas Instruments | LED Drivers | LED Driver 15V/18V/24V 48-Pin WQFN EP T/R | AÑADIR AL CARRITO | |
|
|
LM3463SQX/NOPB | Texas Instruments | LED Drivers | LED Driver 15V/18V/24V 48-Pin WQFN EP T/R | AÑADIR AL CARRITO | |
|
TL103WAIDR | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Dual GP 32V 8-Pin SOIC T/R | AÑADIR AL CARRITO | |
|
|
UCC28810DG4 | Texas Instruments | LED Drivers | LED Driver 7000uA Supply Current 8-Pin SOIC Tube | AÑADIR AL CARRITO | |
|
|
UCC28810DRG4 | Texas Instruments | LED Drivers | LED Driver 7000uA Supply Current 8-Pin SOIC T/R | AÑADIR AL CARRITO | |
|
|
UCC28810D | Texas Instruments | LED Drivers | LED Driver 7000uA Supply Current 8-Pin SOIC Tube | AÑADIR AL CARRITO | |
|
|
UCC28810DR | Texas Instruments | LED Drivers | LED Driver 7000uA Supply Current 8-Pin SOIC T/R | AÑADIR AL CARRITO | |
