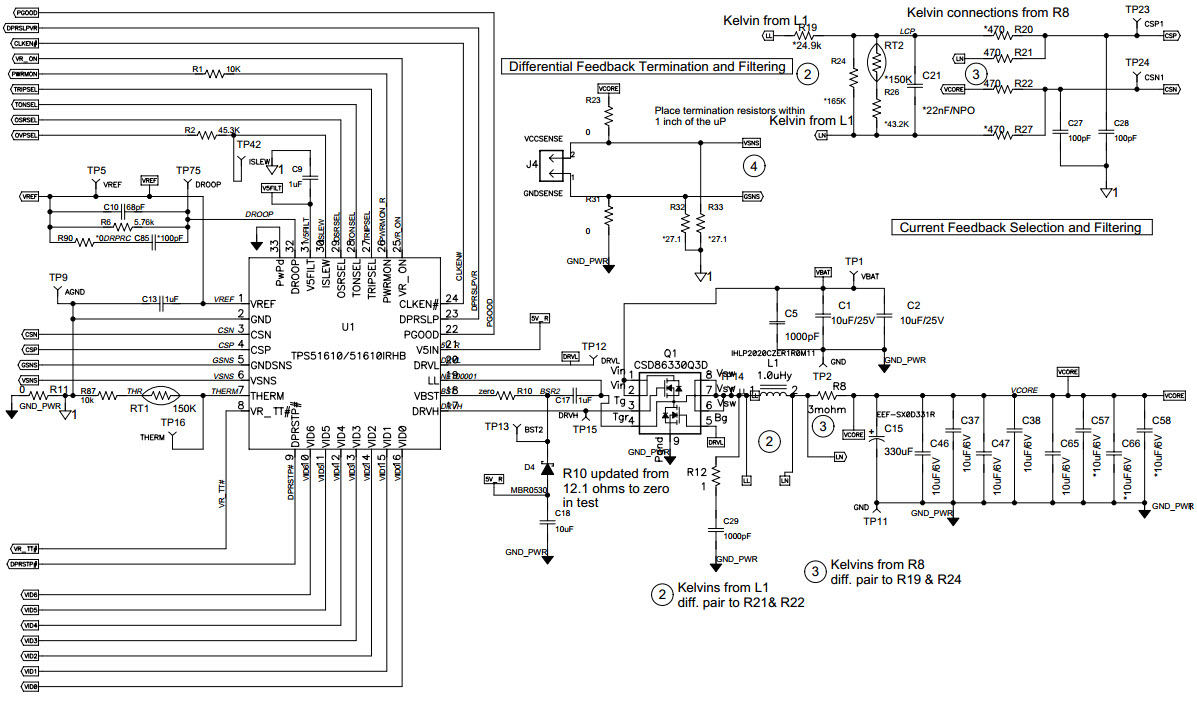

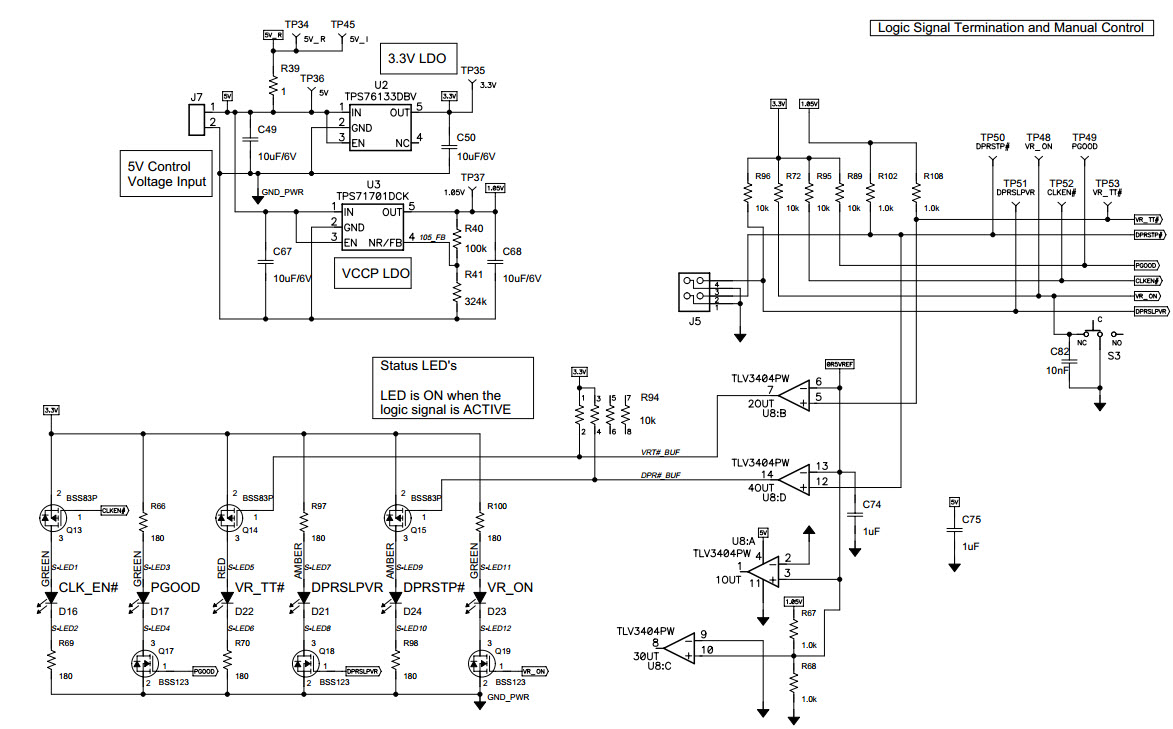

PMP5486, Sync Buck for Intel IMVP6+ Atom
Diseño de referencia usando la pieza TPS51610 de Texas Instruments
이미지
1 / 3
Documentos asociados
Para productos finales
- Power Supplies
Descripción
- PMP5486, the Atom IMVP6+ power management design provides power to the processor's core. The synchronous-buck controller is designed specifically to power IMVP Mobile Processors and implements D-CAP+ control to reduce component count, maintain tight voltage regulation accuracy, and improve the transient response performance. The design also features NEXFET Power Black to reduce the total solution size
Características clave
-
Conversion TypeDC to DC
-
Input Voltage15 V
-
Output Current5 A
-
TopologyBuck
Piezas destacadas (19)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
TLV3404CPWR | Texas Instruments | Linear Comparators | Comparator Quad R-R I/P ±8V/16V 14-Pin TSSOP T/R | AÑADIR AL CARRITO | |
|
CSD86330Q3D | Texas Instruments | Specialized Power ICs and Modules | Synchronous Buck Power Stage 8-Pin LSON-CLIP EP T/R | AÑADIR AL CARRITO | |
|
|
TLV3404IPWG4 | Texas Instruments | Linear Comparators | Comparator Quad R-R I/P ±8V/16V 14-Pin TSSOP Tube | AÑADIR AL CARRITO | |
|
TLV3404CDRG4 | Texas Instruments | Linear Comparators | Comparator Quad R-R I/P ±8V/16V 14-Pin SOIC T/R | AÑADIR AL CARRITO | |
|
UCC27324DGNR | Texas Instruments | Gate and Power Drivers | Driver 4A 2-OUT Low Side Non-Inv 8-Pin HVSSOP EP T/R | AÑADIR AL CARRITO | |
|
TLV3404IN | Texas Instruments | Linear Comparators | Comparator Quad R-R I/P ±8V/16V 14-Pin PDIP Tube | AÑADIR AL CARRITO | |
|
|
UCC27324DGNRG4 | Texas Instruments | Gate and Power Drivers | Driver 4A 2-OUT Low Side Non-Inv 8-Pin HVSSOP EP T/R | AÑADIR AL CARRITO | |
|
|
TLV3404IDRG4 | Texas Instruments | Linear Comparators | Comparator Quad R-R I/P ±8V/16V 14-Pin SOIC T/R | AÑADIR AL CARRITO | |
|
|
TLV3404IDR | Texas Instruments | Linear Comparators | Comparator Quad R-R I/P ±8V/16V 14-Pin SOIC T/R | AÑADIR AL CARRITO | |
|
TPS76133DBVR | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.1A 5-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
|
|
TLV3404IPWR | Texas Instruments | Linear Comparators | Comparator Quad R-R I/P ±8V/16V 14-Pin TSSOP T/R | AÑADIR AL CARRITO | |
|
|
TLV3404IPWRG4 | Texas Instruments | Linear Comparators | Comparator Quad R-R I/P ±8V/16V 14-Pin TSSOP T/R | AÑADIR AL CARRITO | |
