STEVAL-IDS001V4M, Evaluation Board based on the SPIRIT1 SPSGRF-868 868-MHz RF USB Dongle Module
Diseño de referencia usando la pieza SPSGRF-868 de STMicroelectronics
이미지
1 / 6
Documentos asociados
Para productos finales
- Automatic Metering
- Building Automation
- Fire Alarm
- Home Automation
- System Monitoring and Control
- Wireless Sensor
Descripción

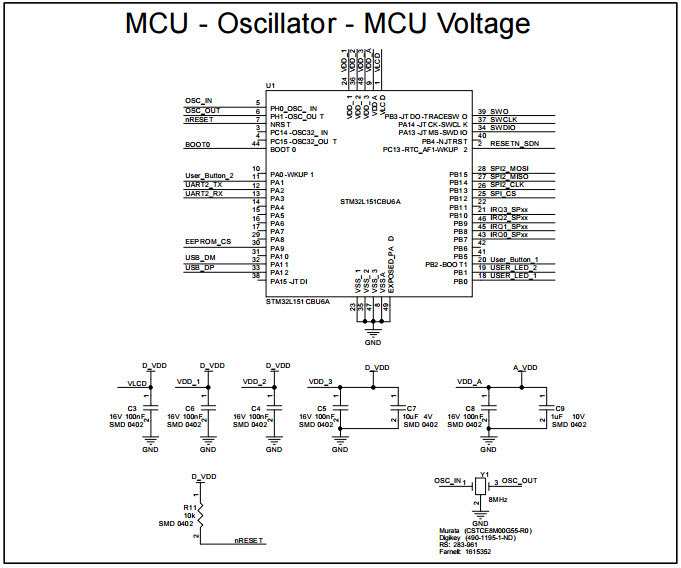

- STEVAL-IDS001V4M, Evaluation Board for the SPSGRF-868 ETSI certified module based on the low-power, low-rate, sub-1GHz SPIRIT1 transceiver. The SPSGRF-868 module integrates the Balun (BALF-SPI-01D3) and a chip antenna and operates in the 868 MHz ISM band. The board is equipped with an STM32L low power microcontroller to control the SPIRIT1 and it also features a USB connector for PC GUI interaction and firmware updates, like the one available for SPIRIT1 evaluation kit. An SWD connector allows the development of specific firmware on the microcontroller
Características clave
-
Operating Frequency868 MHz
Piezas destacadas (4)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
LDS3985PU33R | STMicroelectronics | Linear Regulators | LDO Regulator Pos 3.3V 0.3A 6-Pin DFN-D EP T/R | AÑADIR AL CARRITO | |
|
Y78B22110FP | C&K | Switch Tactile | Switch Tactile OFF Mom SPST Button Gull Wing 0.05A 32VDC 1VA 2N SMD T/R | AÑADIR AL CARRITO | |
|
|
KMR221G LFS | C&K | Switch Tactile | Switch Tactile OFF Mom SPST Button Gull Wing 0.05A 32VDC 1VA 2N SMD T/R | AÑADIR AL CARRITO | |
|
M95640-RMC6TG | STMicroelectronics | EEPROM | EEPROM Serial-SPI 64K-bit 8K x 8 2.5V/3.3V/5V 8-Pin UFDFPN EP T/R | AÑADIR AL CARRITO | |
