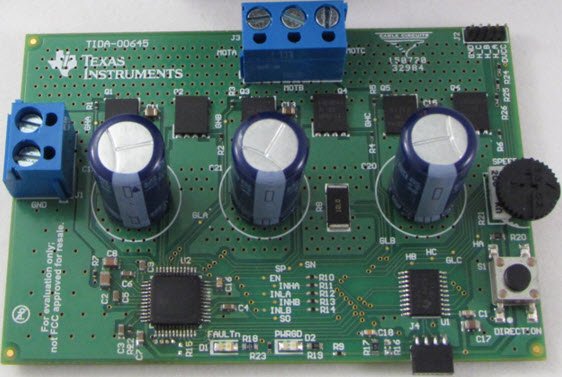

TIDA-00645, 1-PWM Brushless DC Motor Control Reference Design
Diseño de referencia usando la pieza DRV83053PHPR de Texas Instruments
이미지
1 / 3
Para productos finales
- E-Bike
- Scooter
Descripción
- TIDA-00645, Reference Design is a 3-phase sensor Brushless DC Motor controller that uses a single PWM input for controlling speed and three active-high hall sensors for rotor position detection. The DRV8305's integrated commutation table simplifies the microcontroller firmware required for proper commutation. The DRV8305 automatically handles dead time insertion and gate drive current control, both of which can adjusted using the drivers SPI interface
Características clave
-
Motor TypeDC Motor
Piezas destacadas (2)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
MSP430G2553IPW20 | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 16KB Flash 2.5V/3.3V 20-Pin TSSOP Tube | AÑADIR AL CARRITO | |
|
DRV83053PHPR | Texas Instruments | Motor Controller and Driver ICs | Brushless DC Gate Driver 48-Pin HTQFP EP T/R | AÑADIR AL CARRITO | |
