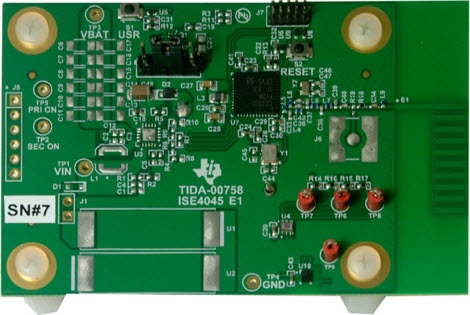

TIDA-00758, Interrupt-Based Ambient Light and Environment Sensor Node for Sub-1GHz Networks Reference Design
Diseño de referencia usando la pieza CC1310F128RGZ de Texas Instruments
이미지
1 / 4
Para productos finales
- Building Automation
- Energy harvesting
- Environmental Sensor
- HVAC
- IoT Applications
- Smart Lighting
- Wireless Sensor
Descripción
- TIDA-00758, Interrupt-Based Ambient Light and Environment Sensor Node for Sub-1GHz Networks Reference Design. The TIDA-00758 Design demonstrates a low-power method of wireless environmental sensing enabling up to 10 years of battery life. This design uses SimpleLink ultra-low power sub-1 GHz wireless microcontroller (MCU) platform and ambient light, humidity and temperature sensing technologies to achieve interrupt-based sensor monitoring when running from the backup battery
Piezas destacadas (7)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
FC-12M 32.7680KA-A3 | Seiko Epson Corporation | Crystals | Crystal 0.032768MHz ±20ppm (Tol) 12.5pF FUND 90000Ohm 2-Pin CSMD T/R | AÑADIR AL CARRITO | |
|
OPT3001DNPR | Texas Instruments | Ambient Light Sensors | Light to Digital Ambient Light Sensor Digital 1.8V/2.5V/3.3V 6-Pin USON EP T/R | AÑADIR AL CARRITO | |
|
X1E000021004812 | Seiko Epson Corporation | Crystals | Crystal 24MHz ±10ppm (Tol) ±20ppm (Stability) 9pF FUND 40Ohm 4-Pin Mini-CSMD T/R | AÑADIR AL CARRITO | |
|
|
OPT3001DNPRQ1 | Texas Instruments | Ambient Light Sensors | Light to Digital Ambient Light Sensor Digital 1.8V/2.5V/3.3V 6-Pin USON EP T/R Automotive AEC-Q100 | AÑADIR AL CARRITO | |
|
|
TSX-3225 24.0000MF20G-AC3 | Seiko Epson Corporation | Crystals | Crystal 24MHz ±10ppm (Tol) ±20ppm (Stability) 9pF FUND 40Ohm 4-Pin Mini-CSMD T/R | AÑADIR AL CARRITO | |
|
CC1310F128RGZR | Texas Instruments | Combo Wireless Modules | WLAN+BT+ZigBee Module 48-Pin VQFN EP T/R | AÑADIR AL CARRITO | |
|
|
CC1310F128RGZT | Texas Instruments | Combo Wireless Modules | WLAN+BT+ZigBee Module 48-Pin VQFN EP T/R | AÑADIR AL CARRITO | |
