TPS92411EVM-001, TPS92411 Floating Switch evaluation board module for 120VAC Linear Direct Drive of LEDs
Diseño de referencia usando la pieza TPS92411PDBV de Texas Instruments
이미지
1 / 2
Para productos finales
- Downlighting
- LED Bulb
- LED Lighting
Descripción

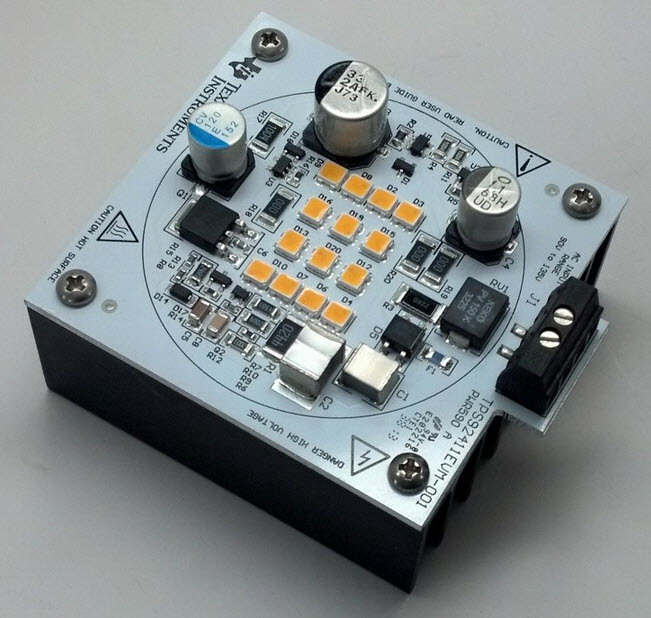

- TPS92411EVM-001 implements a 120VAC, 12W, phase dimmable light engine with high power factor and low LED current ripple on a single-sided metal core printed circuit board (MCPCB). The included LED drive circuit is comprised of a high voltage linear regulator and TPS92411 floating switches arranged to toggle three segments of a high-voltage LED string at eight discrete points during an AC half-cycle. Unlike traditional switched mode power supply (SMPS) converters, the TPS92411EVM-001 uses no magnetic components or high speed switching for power processing
Características clave
-
Input Voltage90 to 135 (AC) V
-
Output Power12 W
-
Number of Derived Elements3
Piezas destacadas (2)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
TPS92411PDBVR | Texas Instruments | LED Drivers | LED Driver 4 Segment 5-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
|
|
TPS92411PDBVT | Texas Instruments | LED Drivers | LED Driver 4 Segment 5-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
