TRESOR, Mezzanine Board enables the 96Boards to implement different Security elements in the Projects based on SLB9670x Secure MCU and Trusted Platform Module (TPM)
Diseño de referencia usando la pieza SLB9670XQ20FW740 de Arrow Development Tools
이미지
1 / 3
Para productos finales
- Internet of Things (IoT)
Descripción

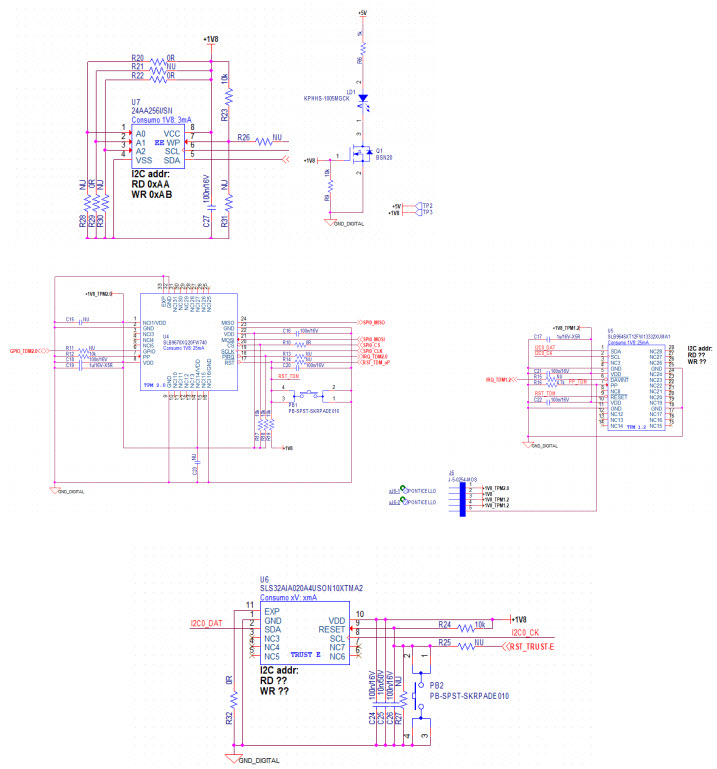

- TRESOR, Mezzanine Board is a solution that enables the 96Boards to implement different security elements in the projects. The Board consists of three key components. The SLB9670x provides Trusted Platform Module (TPM) 2.0 functionality through SPI communication on the standard 96Boards LS expansion connector. For more compatibility the board contains the SLB9645x chip as well for supporting the TPM 1.2 Standard through I2C communication on the standard 96Boards LS expansion connector. The third secure element is the SLS32AIA020A TRUST-E authentication chip, sharing the same I2C bus with the TPM 1.2 module. This authentication functionality is mainly dedicated to the 96Boards IoT Edition platforms
Piezas destacadas (5)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
24AA256-I/SNG | Microchip Technology | EEPROM | EEPROM Serial-I2C 256K-bit 32K x 8 1.8V/2.5V/3.3V/5V Automotive AEC-Q100 8-Pin SOIC N Tube | AÑADIR AL CARRITO | |
|
FT234XD-R | Future Technology Devices International Limited | Universal Asynchronous Receiver Transmitter- UARTs | Full Speed USB to Basic UART IC USB 2.0 1.8V/2.5V/3.3V/5V T/R 12-Pin DFN EP | AÑADIR AL CARRITO | |
|
SLS32AIA020A4USON10XTMA2 | Infineon Technologies AG | Authenticators | Authenticator 3KB 10-Pin USON EP | AÑADIR AL CARRITO | |
|
|
24AA256-I/SN | Microchip Technology | EEPROM | EEPROM Serial-I2C 256K-bit 32K x 8 1.8V/2.5V/3.3V/5V Automotive AEC-Q100 8-Pin SOIC N Tube | AÑADIR AL CARRITO | |
|
SLB9670XQ20FW740XUMA1 | Infineon Technologies AG | Secure Microcontrollers and TPM | Trusted Platform Module SPI Interface 32-Pin VQFN EP T/R | AÑADIR AL CARRITO | |
