DC2048A, Demonstration Board using LTC3330EUH nano-power Buck-Boost DC/DC with Energy Harvesting Battery Life Extender
Analog Devices の部品 LTC3330EUH#PBF を使用したリファレンス デザイン
画像
1 / 4
関連文書
最終製品向け
- Energy harvesting
- HVAC
- Industrial Asset Tracking
- Security System
- Solar Power
- Wireless Sensor
説明

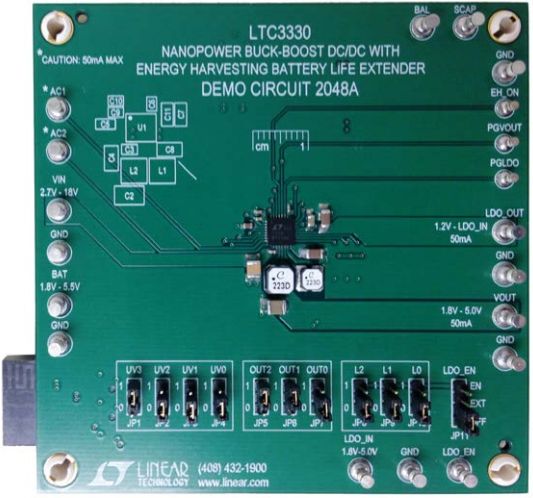

- DC2048A, Demonstration Board using LTC3330EUH nano-power Buck-Boost DC/DC with Energy Harvesting Battery Life Extender. The LTC3330 integrates a high voltage energy harvesting power supply plus a DC/DC converter powered by a primary cell battery to create a single output supply for alternative energy applications. The energy harvesting power supply, consisting of an integrated low-loss full-wave bridge with a high voltage buck converter, harvests energy from piezoelectric, solar or magnetic sources. The primary cell input powers a buck-boost converter capable of operating down to 1.8V at its input
主な特徴
-
Conversion TypeDC to DC
-
Input Voltage3 to 18 V
-
Output Voltage1.2|1.8 to 5 V
-
Output Current0.05 A
-
Efficiency94 %
-
TopologyBuck Boost
