EVAL-AD7903SDZ, Evaluation Board for Evaluating the AD7903 Dual Differential, 16-Bit, 1 MSPS PulSAR ADC
Reference Design using part AD7903BRQZ by Analog Devices
1 / 9
For End Products
- Automatic Test Equipment
- Battery Powered Instrument
- Data Acquisition System
- Portable Medical Instrumentation
- Wireless Communications
Description

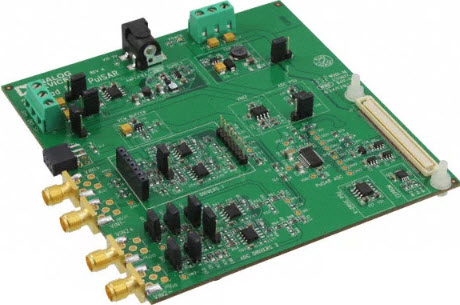

- EVAL-AD7903SDZ, Evaluation Board is designed to demonstrate the low power AD7903 performance and to provide an easy to understand interface for a variety of system applications. The AD7903 is a dual differential 16-bit, 1 MSPS PulSAR ADC. The evaluation board is ideal for use with the system demonstration platform (SDP) board, EVAL-SDP-CB1Z. The user PC software executable controls the evaluation board over the USB through the SDP board, EVAL-SDP-CB1Z
Key Features
-
ADC Resolution16 Bit
-
ADC Sampling Rate1M SPS
Featured Parts (19)
