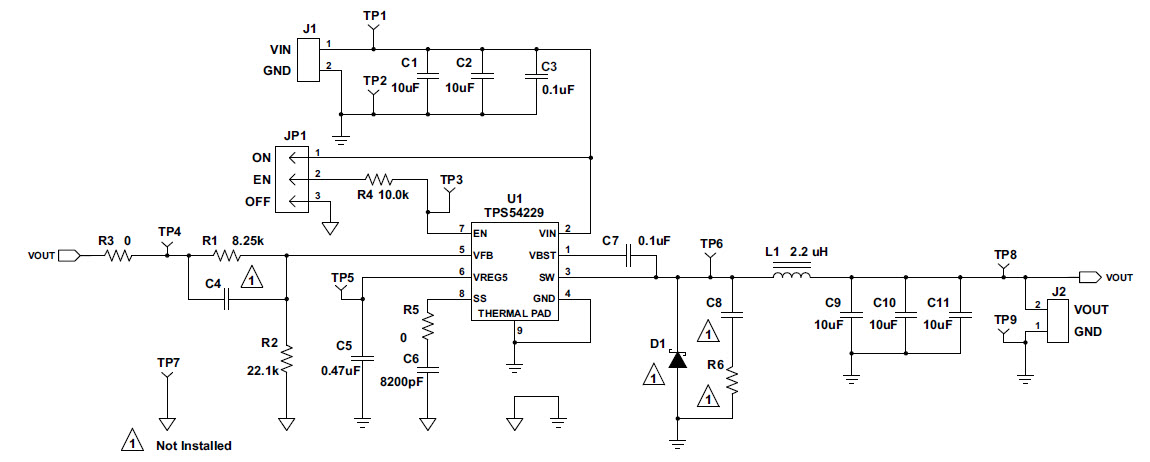

TPS54229EVM-056, Evaluation Board using TPS54229 Single, adaptive on-time, 2-A Synchronous Step-Down DCAP2 Mode Converter

Reference Design using part TPS54229DDA by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies
Buy

For End Products

  • High Definition Blue-ray Disc Player
  • Networking Home Terminal
  • Power Supplies
  • Set-Top Box

Description

  • TPS54229EVM-056, Evaluation Board using TPS54229 single, adaptive on-time, D-CAP2-mode, synchronous buck converter requiring a low, external component count. The D-CAP2 control circuit is optimized for low-ESR output capacitors such as POSCAP, SP-CAP, or ceramic types and features fast transient response with no external compensation. The switching frequency is internally set at a nominal 650 kHz. The high-side and low-side switching MOSFETs are incorporated inside the TPS54229 package along with the gate drive circuitry

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    4.5 to 18 V
  • Output Voltage
    1.05 V
  • Output Current
    2 A
  • Efficiency
    86.5 %
  • Topology
    Buck

Featured Parts (2)

Featured Parts
Part Number Manufacturer Type Description
TPS54229DDA Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 4.5V to 18V Synchronous Step Down Single-Out 0.76V to 7V 2A 8-Pin HSOIC EP Tube Buy
TPS54229DDAR Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 4.5V to 18V Synchronous Step Down Single-Out 0.76V to 7V 2A 8-Pin HSOIC EP T/R Buy
