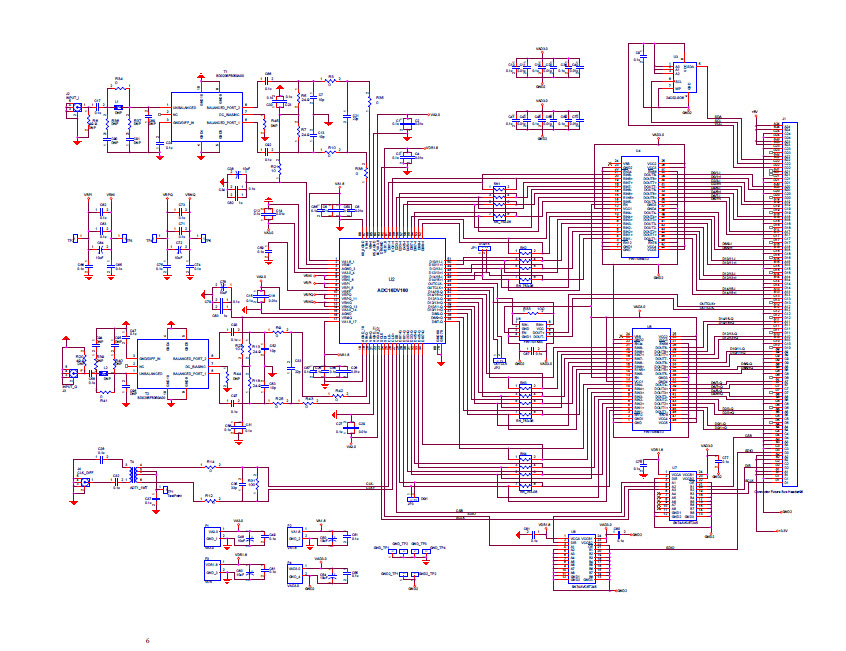

ADC16DV160HFEB/NOPB, Evaluation Board using ADC16DV160 dual 16-bit, 160 MSPS Analog to Digital Converter
Diseño de referencia usando la pieza ADC16DV160CILQ de Texas Instruments
이미지
1 / 2
Para productos finales
- Analog Receiver
- Communications and Telecom
- Measurement Instruments
- Portable
- Test Equipment
- WiMAX Basestation
- Wireless Base Station
Descripción
- ADC16DV160HFEB/NOPB, Evaluation Board using ADC16DV160 Dual Channel 16-bit Analog-to-Digital Converter with DDR LVDS outputs, which operates at speeds up 160 Msps. The evaluation board can be used by connecting the board to the Wave Vision 5.1 Data Capture Board (order number WAVEVSN BRD 5.1), which is connected to a personal computer through a USB port and running Wave Vision software, operating under Microsoft Windows
Características clave
-
ADC Resolution16 Bit
-
ADC Sampling Rate160M SPS
-
Number of Channels2CH
Piezas destacadas (9)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
FIN1108MTDX | onsemi | LVDS | Repeater 3.3V 48-Pin TSSOP W T/R | AÑADIR AL CARRITO | |
|
SN74AVC8T245DGVR-P | Texas Instruments | Level Translators | Voltage Level Translator 8-CH Bidirectional 24-Pin TVSOP | AÑADIR AL CARRITO | |
|
FIN1101K8X | onsemi | LVDS | LVDS Repeater 800Mbps 0.45V 8-Pin US T/R | AÑADIR AL CARRITO | |
|
SN74AVC8T245DGVR | Texas Instruments | Level Translators | Voltage Level Translator CMOS to CMOS 8-CH Bidirectional 24-Pin TVSOP T/R | AÑADIR AL CARRITO | |
|
ADC16DV160CILQ/NOPB | Texas Instruments | Analog to Digital Converters - ADCs | 2-Channel Dual ADC Pipelined 160Msps 16-bit Serial (3-Wire, SPI)/LVDS 68-Pin VQFN EP Tray | AÑADIR AL CARRITO | |
|
|
ADC16DV160CILQE/NOPB | Texas Instruments | Analog to Digital Converters - ADCs | 2-Channel Dual ADC Pipelined 160Msps 16-bit Serial (3-Wire, SPI)/LVDS 68-Pin VQFN EP T/R | AÑADIR AL CARRITO | |
|
|
ADC16DV160CILQX/NOPB | Texas Instruments | Analog to Digital Converters - ADCs | 2-Channel Dual ADC Pipelined 160Msps 16-bit Serial (3-Wire, SPI)/LVDS 68-Pin VQFN EP T/R | AÑADIR AL CARRITO | |
|
|
ADC16DV160CILQE/NOPB | Texas Instruments | Analog to Digital Converters - ADCs | 2-Channel Dual ADC Pipelined 160Msps 16-bit Serial (3-Wire, SPI)/LVDS 68-Pin VQFN EP T/R | AÑADIR AL CARRITO | |
|
|
ADC16DV160CILQ/NOPB | Texas Instruments | Analog to Digital Converters - ADCs | 2-Channel Dual ADC Pipelined 160Msps 16-bit Serial (3-Wire, SPI)/LVDS 68-Pin VQFN EP Tray | AÑADIR AL CARRITO | |
