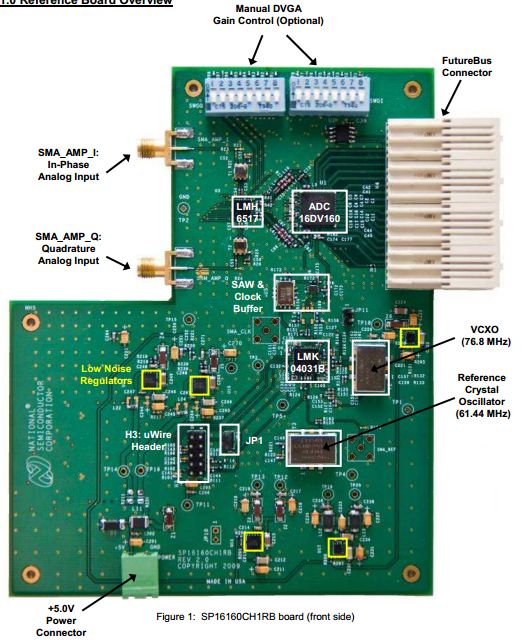

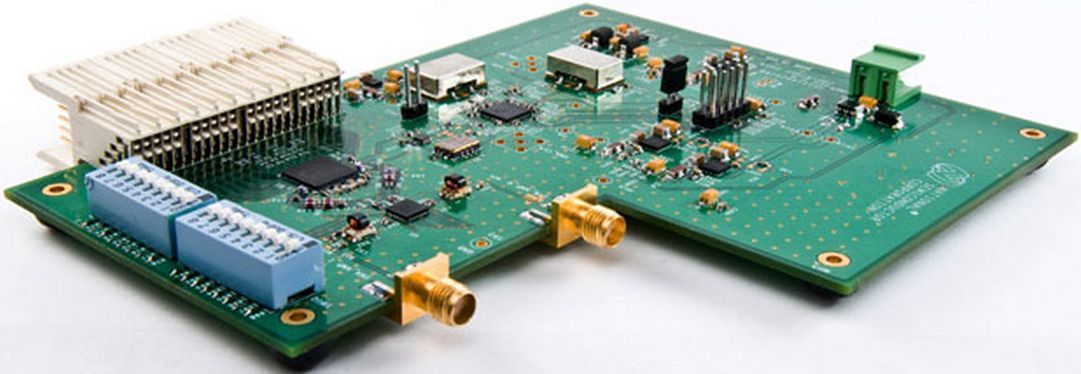

SP16160CH1RBKIT/NOPB, High-IF Receiver Reference Design Board for the LMH6517 + ADC16DV160 + LMK04031B
Diseño de referencia usando la pieza ADC16DV160CILQ de Texas Instruments
이미지
1 / 8
Documentos asociados
Para productos finales
- Communications and Telecom
- Measurement Instruments
- Test Equipment
- Wireless Base Station
Descripción

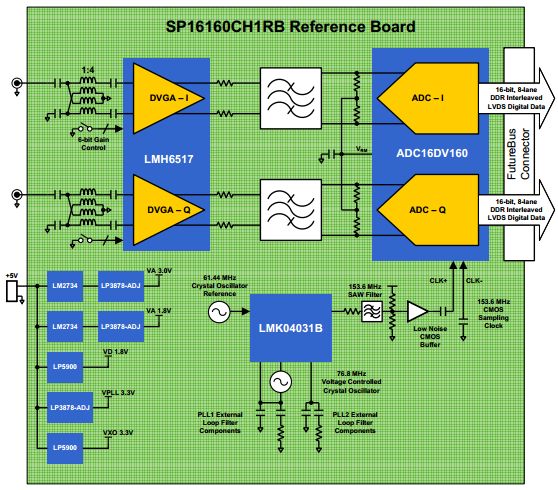

- SP16160CH1RBKIT/NOPB, High-IF Sub-sampling Receiver Subsystem. The SP16160CH1RB demonstrates a high-IF sampling receiver subsystem that provides signal amplification, digitization and clocking as used in wireless infrastructure systems. The subsystem includes the ADC16DV160 analog-to-digital converter (ADC), LMH6517 Digitally-controlled Variable-Gain Amplifier (DVGA) and LMK04031B precision clock conditioner
Características clave
-
ADC Resolution16 Bit
-
ADC Sampling Rate160M SPS
-
Number of Channels2CH
Piezas destacadas (22)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
LMH6517SQX/NOPB | Texas Instruments | Special Purpose Amplifiers | SP Amp Variable Gain Amp Dual 5.25V 32-Pin WQFN EP T/R | AÑADIR AL CARRITO | |
|
LMK04031BISQE/NOPB | Texas Instruments | Clock Generators and Synthesizers | Clock Generator 0.001MHz to 400MHz-IN 1080MHz-OUT 48-Pin WQFN EP T/R | AÑADIR AL CARRITO | |
|
|
LMK04031BISQE/NOPB | Texas Instruments | Clock Generators and Synthesizers | Clock Generator 0.001MHz to 400MHz-IN 1080MHz-OUT 48-Pin WQFN EP T/R | AÑADIR AL CARRITO | |
|
|
LMH6517SQ/NOPB | Texas Instruments | Special Purpose Amplifiers | SP Amp Variable Gain Amp Dual 5.25V 32-Pin WQFN EP T/R | AÑADIR AL CARRITO | |
|
LP5900SD-1.8/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.8V 0.15A 6-Pin WSON EP T/R | AÑADIR AL CARRITO | |
|
|
LP5900SD-3.3 | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 6-Pin WSON EP T/R | AÑADIR AL CARRITO | |
|
LP3878SD-ADJ/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 1V to 5.5V 0.8A 8-Pin WSON EP T/R | AÑADIR AL CARRITO | |
|
|
LP3878SD-ADJ/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 1V to 5.5V 0.8A 8-Pin WSON EP T/R | AÑADIR AL CARRITO | |
|
|
LP5900SD-3.3/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 6-Pin WSON EP T/R | AÑADIR AL CARRITO | |
|
|
LMH6517SQE/NOPB | Texas Instruments | Special Purpose Amplifiers | SP Amp Variable Gain Amp Dual 5.25V 32-Pin WQFN EP T/R | AÑADIR AL CARRITO | |
|
|
LMH6517SQX/NOPB | Texas Instruments | Special Purpose Amplifiers | SP Amp Variable Gain Amp Dual 5.25V 32-Pin WQFN EP T/R | AÑADIR AL CARRITO | |
|
|
LP5900SD-1.8/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.8V 0.15A 6-Pin WSON EP T/R | AÑADIR AL CARRITO | |
