AKD7754-A, Evaluation Board for AK7754 Audio DSP with Stereo CODEC
Diseño de referencia usando la pieza AK7754EN de Asahi Kasei Microdevices Corporation
이미지
1 / 11
Para productos finales
- Audio Interfaces
Descripción

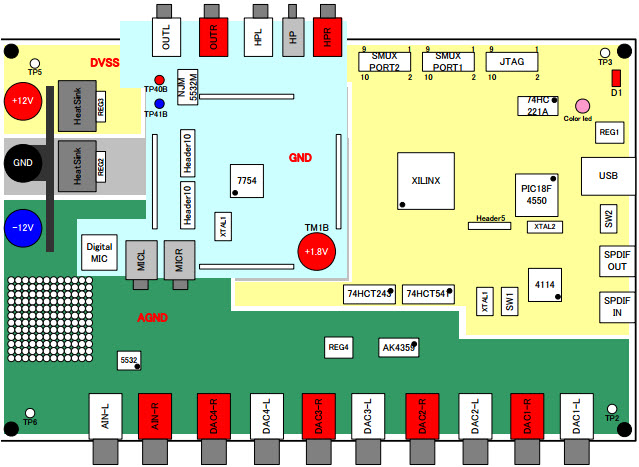

- AKD7754-A, Evaluation Board for the AK7754, which is an audio processor including a stereo CODEC, SRC, 2 digital I/Fs, microphone Pre-Amplifier and bias/HeadPhone amplifier and audio DSP. This board is composed of a main board and a sub board. It is possible to control the setting of this board via USB port. RCA and phone jack connectors are used for the analog input and output signal. This board also has digital interface, enabling interfacing to digital audio systems via optical connector
Características clave
-
CODEC Resolution24 Bit
Piezas destacadas (3)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
PIC18F4550T-I/PT | Microchip Technology | Microcontrollers - MCUs | MCU 8-bit PIC RISC 32KB Flash 3.3V/5V 44-Pin TQFP T/R | AÑADIR AL CARRITO | |
|
|
PIC18F4550IPT | 8-bit MCU | Microchip Technology | Microcontrollers - MCUs | MCU 8-bit PIC RISC 32KB Flash 3.3V/5V 44-Pin TQFP Tray | AÑADIR AL CARRITO | |
|
NJM5532M | Nisshinbo Micro Devices Inc | Operational Amplifiers - Op Amps | Op Amp Dual Low Noise Amplifier ±22V 8-Pin DMP | AÑADIR AL CARRITO | |
