EVAL-ADAU1467Z, Evaluation Board for Evaluating the ADAU1463 and ADAU1467 SigmaDSP Audio Processors
Diseño de referencia usando la pieza ADAU1467WBCPZ de Analog Devices
이미지
1 / 26
Para productos finales
- Car AV
- Home Theater
- Infotainment
Descripción

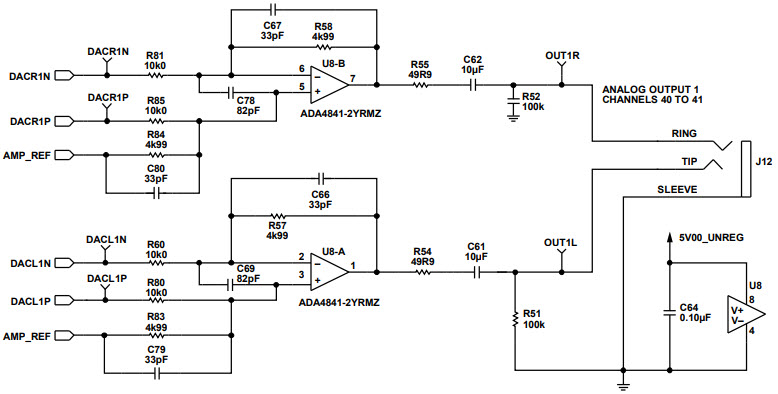

- EVAL-ADAU1467Z, Evaluation Board is suitable for the evaluation of, and software development for, the ADAU1467 and ADAU1463 SigmaDSP processors. Note that the ADAU1467 and the ADAU1463 are functionally identical however, the ADAU1467 has more program and data memory than the ADAU1463. This evaluation board provides access to the digital serial audio ports of the ADAU1467. Four analog inputs and eight analog outputs are provided by the AD1937 codec included in the evaluation kit. Switches enable the evaluation of alternate features provided by many of the pins with multiplexed functionality, and numerous headers provide access to serial audio ports and the master and slave control ports. These selectable modes and headers make the EVAL-ADAU1467Z well suited to prototyping larger application circuits, as well as initial device evaluation
Características clave
-
CODEC Resolution24 Bit
Piezas destacadas (15)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
ADM811MARTZ-REEL7 | Analog Devices | Supervisory Circuits | Processor Supervisor 4.38V 1 Active Low/Push-Pull 4-Pin SOT-143 T/R | AÑADIR AL CARRITO | |
|
25AA1024-I/SM | Microchip Technology | EEPROM | EEPROM Serial-SPI 1M-bit 128K x 8 2.5V/3.3V/5V Automotive AEC-Q100 8-Pin SOIJ Tube | AÑADIR AL CARRITO | |
|
CAS-120TA | NIDEC COMPONENTS CORPORATION | Switch Slide | Switch Slide ON ON SPDT Recessed Slide 0.1A 24VDC J-Bend SMD T/R | AÑADIR AL CARRITO | |
|
ADP3338AKCZ-3.3RL7 | Analog Devices | Linear Regulators | LDO Regulator Pos 3.3V 1A 4-Pin(3+Tab) SOT-223 T/R | AÑADIR AL CARRITO | |
|
AD1937WBSTZ | Analog Devices | Audio CODECs | General Purpose Audio Codec 4ADC / 8DAC Ch Automotive AEC-Q100 64-Pin LQFP Tray | AÑADIR AL CARRITO | |
|
ADA4610-1ARJZ-R2 | Analog Devices | Operational Amplifiers - Op Amps | Op Amp Single Precision Amplifier R-R O/P ±15V Medical 5-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
|
|
ADA4610-1ARJZ-RL | Analog Devices | Operational Amplifiers - Op Amps | Op Amp Single Precision Amplifier R-R O/P ±15V Medical 5-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
|
|
ADA4610-1ARJZ-R7 | Analog Devices | Operational Amplifiers - Op Amps | Op Amp Single Precision Amplifier R-R O/P ±15V Medical 5-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
|
|
ADM811TARTZ-REEL7 | Analog Devices | Supervisory Circuits | Processor Supervisor 3.08V 1 Active Low/Push-Pull 4-Pin SOT-143 T/R | AÑADIR AL CARRITO | |
|
74ACT04SC | onsemi | Inverters and Schmitt Triggers | Inverter 6-Element CMOS 14-Pin SOIC N Tube | AÑADIR AL CARRITO | |
|
ADA4841-2YRMZ | Analog Devices | Operational Amplifiers - Op Amps | Op Amp Dual Low Noise Amplifier R-R O/P ±6V/12V 8-Pin MSOP Tube | AÑADIR AL CARRITO | |
|
219-4MST | CTS Corporation | Switch DIP | Switch DIP ON OFF SPST 4 Raised Slide 0.1A 20VDC Gull Wing 2000Cycles 2.54mm SMD Tube | AÑADIR AL CARRITO | |
