TIDA-00287, 2-Port USB 3.0 Hub Reference Design
Diseño de referencia usando la pieza TUSB8020B de Texas Instruments
이미지
1 / 8
Documentos asociados
Para productos finales
- Computers and Peripherals
- Docking Station
- LCD Monitor
- Set-Top Box
Descripción

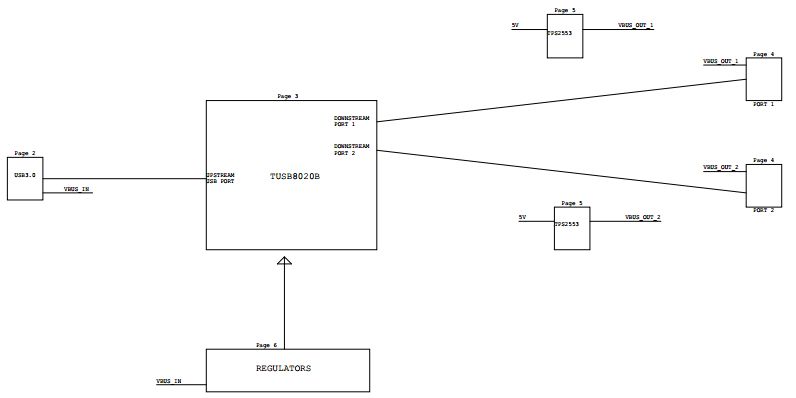

- TIDA-00287, 2-Port USB 3.0 Hub Reference Design. This verified reference design is a two-port, USB 3.0 compliant hub. It provides simultaneous SuperSpeed and high-speed/full-speed connections on the upstream port and provides SuperSpeed, high-speed, full-speed, or low-speed connections on the down-stream ports. The hub design provides power control for each down-stream port, as well as over-current protection and ESD protection
Características clave
-
Interface StandardsUSB 3.0
