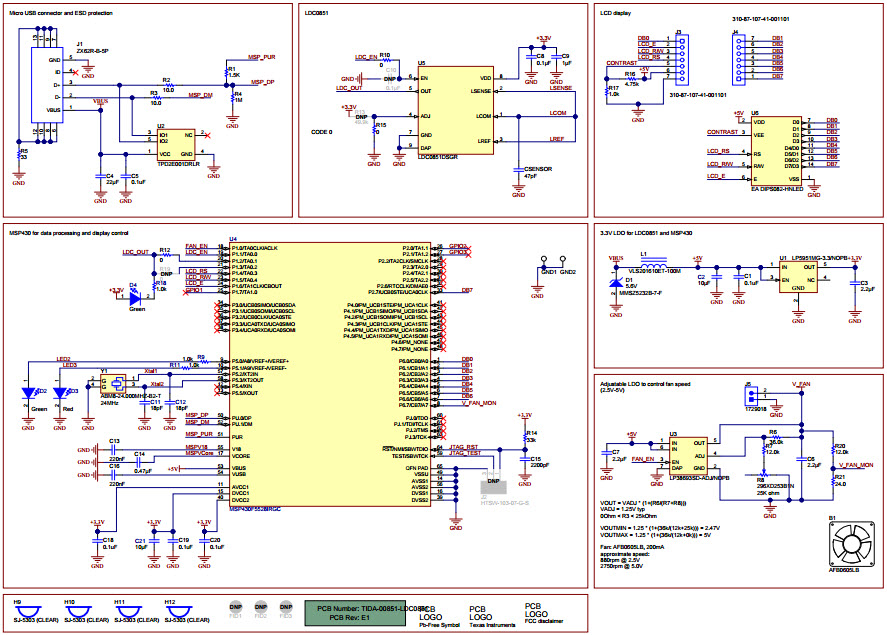

TIDA-00851-LDC0851, LDC0851 Event Counting Reference Design
Diseño de referencia usando la pieza LDC0851HDSGR de Texas Instruments
이미지
1 / 4
Para productos finales
- Flow Meter
- Geartooth sensor
- HVAC
- Robotics
- Speed Detection
- Transmitters
Descripción
- TIDA-00851-LDC0851, LDC0851 Event Counting Reference Design. An inductive sensing (LDC)-based event counting design providing a robust and low-cost interface for speed measurement and event counting applications. The solution doesn't require magnets and reliably operates in environments with dirt, moisture or oil that usually pose challenges for alternate sensing technologies
Piezas destacadas (6)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
LP5951MG-3.3/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 5-Pin SC-70 T/R | AÑADIR AL CARRITO | |
|
ABM8-24.000MHZ-B2-T | Abracon | Crystals | Crystal 24MHz ±20ppm (Tol) ±50ppm (Stability) 18pF FUND 50Ohm 4-Pin CSMD T/R | AÑADIR AL CARRITO | |
|
LP38693SD-ADJ/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.25V to 9V 0.5A 6-Pin WSON EP T/R | AÑADIR AL CARRITO | |
|
|
LP5951MG-3.3/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 5-Pin SC-70 T/R | AÑADIR AL CARRITO | |
|
|
LP38693SD-ADJ/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.25V to 9V 0.5A 6-Pin WSON EP T/R | AÑADIR AL CARRITO | |
|
LDC0851HDSGR | Texas Instruments | Proximity Sensors | Proximity Sensor Inductive 1.71V to 3.46VDC 8-Pin WSON EP T/R | AÑADIR AL CARRITO | |
