TMDXRM57LHDK, RM57L Hercules Development Kit (HDK) based on the RM57L843 Microcontroller
Diseño de referencia usando la pieza PRM57L843ZWTT de Texas Instruments
이미지
1 / 31
Para productos finales
- Defibrillator
- Elevator
- Gas Turbines
- Industrial Automation HMI
- Industrial Programmable Logic Controllers (PLCs)
- Medical Appliances
- Power Generation
- Pumps
- Radiation Tolerant
- Robotics
- Safety System
- Ventilators & Respirators
Descripción
- TMDXRM57LHDK, RM57L Hercules Development Kit (HDK) based on the RM57L843 Microcontroller. The RM57L HDK is a table top card that allows engineers and software developers to evaluate certain characteristics of the RM57L843 microcontroller to determine if the microcontroller meets the designer's application requirements as well as begin early application development. The RM57L Hercules Development Kit is ideal for getting started on development with the Hercules RM57L843 high-performance safety microcontrollers. The kit is comprised of a development board, a DC power supply, a mini-B USB cable, an Ethernet cable and a software installation DVD that includes Code Composer Studio IDE
Características clave
-
Embedded System TypeMCU
-
Family NameRM57L Hercules
-
Core ProcessorARM Cortex-R5
-
PlatformHercules Development Kit
Piezas destacadas (24)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|

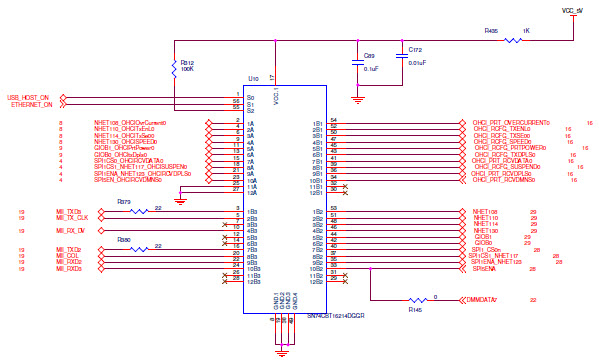

SN74CBT16214DGGR | Texas Instruments | Bus Switches | Multiplexer/Demultiplexer Bus Switch 1-Element CMOS 36-IN 56-Pin TSSOP T/R | AÑADIR AL CARRITO | |
|
SN74CBTLV3245ARGYR | Texas Instruments | Bus Switches | Bus Switch 1-Element CMOS 8-IN 20-Pin VQFN EP T/R | AÑADIR AL CARRITO | |
|
REG1117 | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.25V to 13.5V 0.8A 4-Pin(3+Tab) SOT-223 Tube | AÑADIR AL CARRITO | |
|
SN74CBTLV3257RGYR | Texas Instruments | Bus Switches | Multiplexer/Demultiplexer Bus Switch 1-Element CMOS 8-IN 16-Pin VQFN EP T/R | AÑADIR AL CARRITO | |
|
TDA04H0SB1R | C&K | Switch DIP | Switch DIP OFF ON SPST 4 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD T/R | AÑADIR AL CARRITO | |
|
TPS2553DBVT | Texas Instruments | USB Power Switches | Power Switch Hi Side 1-OUT 0A 85mOhm 6-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
|
TUSB1105RGTR | Texas Instruments | USB Transceivers | USB Transceiver 1TR 12Mbps 16-Pin VQFN EP T/R | AÑADIR AL CARRITO | |
|
TPS73433DRVR | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.25A 6-Pin WSON EP T/R | AÑADIR AL CARRITO | |
|
FT2232HL-REEL | Future Technology Devices International Limited | USB Interface ICs | High Speed USB to UART/FIFO USB 2.0 1.8V/3.3V T/R 64-Pin LQFP | AÑADIR AL CARRITO | |
|
93LC56C-I/SN | Microchip Technology | EEPROM | EEPROM Serial-Microwire 2K-bit 256 x 8/128 x 16 3.3V/5V 8-Pin SOIC N Tube | AÑADIR AL CARRITO | |
|
ABM8G-12.000MHZ-B4Y-T | Abracon | Crystals | Crystal 12MHz ±30ppm (Tol) ±30ppm (Stability) 10pF FUND 120Ohm 4-Pin Ultra Mini-CSMD T/R | AÑADIR AL CARRITO | |
|
DP83640TVV/NOPB | Texas Instruments | PHY | PHY 1-CH 10Mbps/100Mbps 3.3V 48-Pin LQFP Tray | AÑADIR AL CARRITO | |
