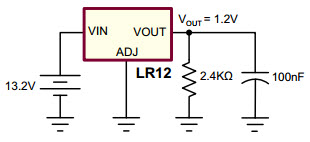

Typical Application for High Input Voltage, Adjustable 3-Terminal Linear Regulator with 1.2V output
Diseño de referencia usando la pieza LR12 de Microchip Technology
이미지
1 / 1
Para productos finales
- Automotive Applications
- Battery Powered Systems
- Compact SMPS
- Constant Current Regulators
- Industrial Control
- LED Driver
- Motor Control
- Power Supplies
- Telecom Applications
Descripción
- Typical Application for High Input Voltage, Adjustable 3-Terminal Linear Regulator with 1.2V output. The LR12 is a high voltage, low output current, adjustable linear regulator. It has a wide operating input voltage range of 13.2 - 100V
Características clave
-
Conversion TypeDC to DC
-
TopologyLDO
Piezas destacadas (3)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
LR12LG-G | Microchip Technology | Linear Regulators | Standard Regulator Pos 1.2V to 88V 0.0005A 8-Pin SOIC N T/R | AÑADIR AL CARRITO | |
|
LR12K4-G | Microchip Technology | Linear Regulators | Standard Regulator Pos 1.2V to 88V 0.0005A 3-Pin(2+Tab) TO-252 T/R | AÑADIR AL CARRITO | |
|
LR12N3-G | Microchip Technology | Linear Regulators | Standard Regulator Pos 1.2V to 88V 0.0005A 3-Pin TO-92 Bag | AÑADIR AL CARRITO | |
