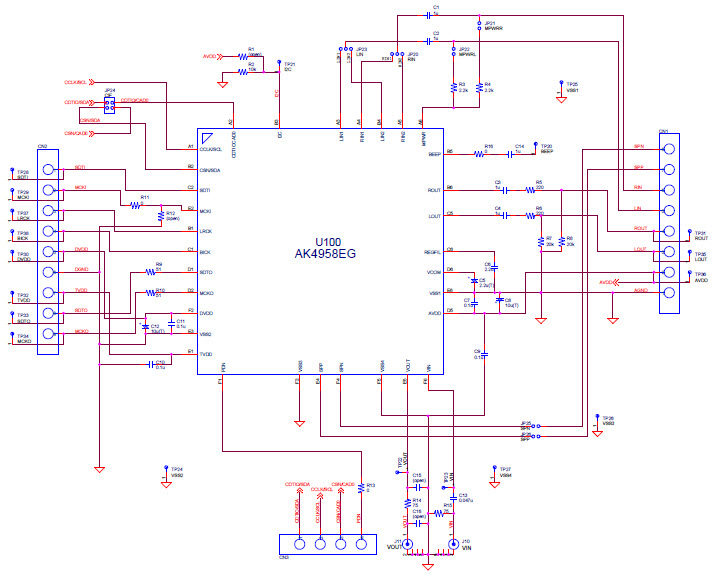

AKD4958EG-B, Evaluation Board for AK4958 24-bit Audio Codec
Using Part
Vignette
1 / 7
Pour les produits finaux
- Audio Interfaces
Description
- AKD4958EG-B, Evaluation Board for the AK4958, 24-bit stereo CODEC with a microphone, speaker, video amplifiers and LDO. The AKD4958EG-B is controlled via USB port, allowing simple evaluation. It features a USB audio device therefore audio signals can be input through the USB port from a PC. The built-in digital audio interface realizes interfacing to digital audio systems via optical connector. for analog connections, the AKD4958EG-B has a Line output, Microphone input, and HeadPhone output terminals. In addition, it has a Flash Rom that enables a stand-alone operation
Caractéristiques principales
-
CODEC Resolution24 Bit
Pièces en vedette (7)
| Pièce numéro | Fabricant | Type | Description | |||
|---|---|---|---|---|---|---|
|
PIC18F4550IPT | 8-bit MCU | Microchip Technology | Microcontrollers - MCUs | MCU 8-bit PIC RISC 32KB Flash 3.3V/5V 44-Pin TQFP Tray | Ajouter au panier | |
|
PCM2902E/2KG4 | Texas Instruments | Audio CODECs | General Purpose Audio Codec 1ADC / 1DAC Ch 28-Pin SSOP T/R | Ajouter au panier | |
|
AK4118AEQP-L | Asahi Kasei Microdevices Corporation | Transceivers Misc | Transceiver 2TX 7RX 48-Pin LQFP | Ajouter au panier | |
|
|
PIC18F4550T-I/PT | Microchip Technology | Microcontrollers - MCUs | MCU 8-bit PIC RISC 32KB Flash 3.3V/5V 44-Pin TQFP T/R | Ajouter au panier | |
|
|
PCM2902E/2KG4 | Texas Instruments | Audio CODECs | General Purpose Audio Codec 1ADC / 1DAC Ch 28-Pin SSOP T/R | Ajouter au panier | |
|
|
AK4118AEQ | Asahi Kasei Microdevices Corporation | Transceivers Misc | Transceiver 2TX 7RX 48-Pin LQFP | Ajouter au panier | |
|
|
PCM2902EG4 | Texas Instruments | Audio CODECs | General Purpose Audio Codec 1ADC / 1DAC Ch 28-Pin SSOP Tube | Ajouter au panier | |
