MCIMX6Q-SDP, SABRE Development Platform for Smart Devices Based on the i.MX 6 Series
Using Part

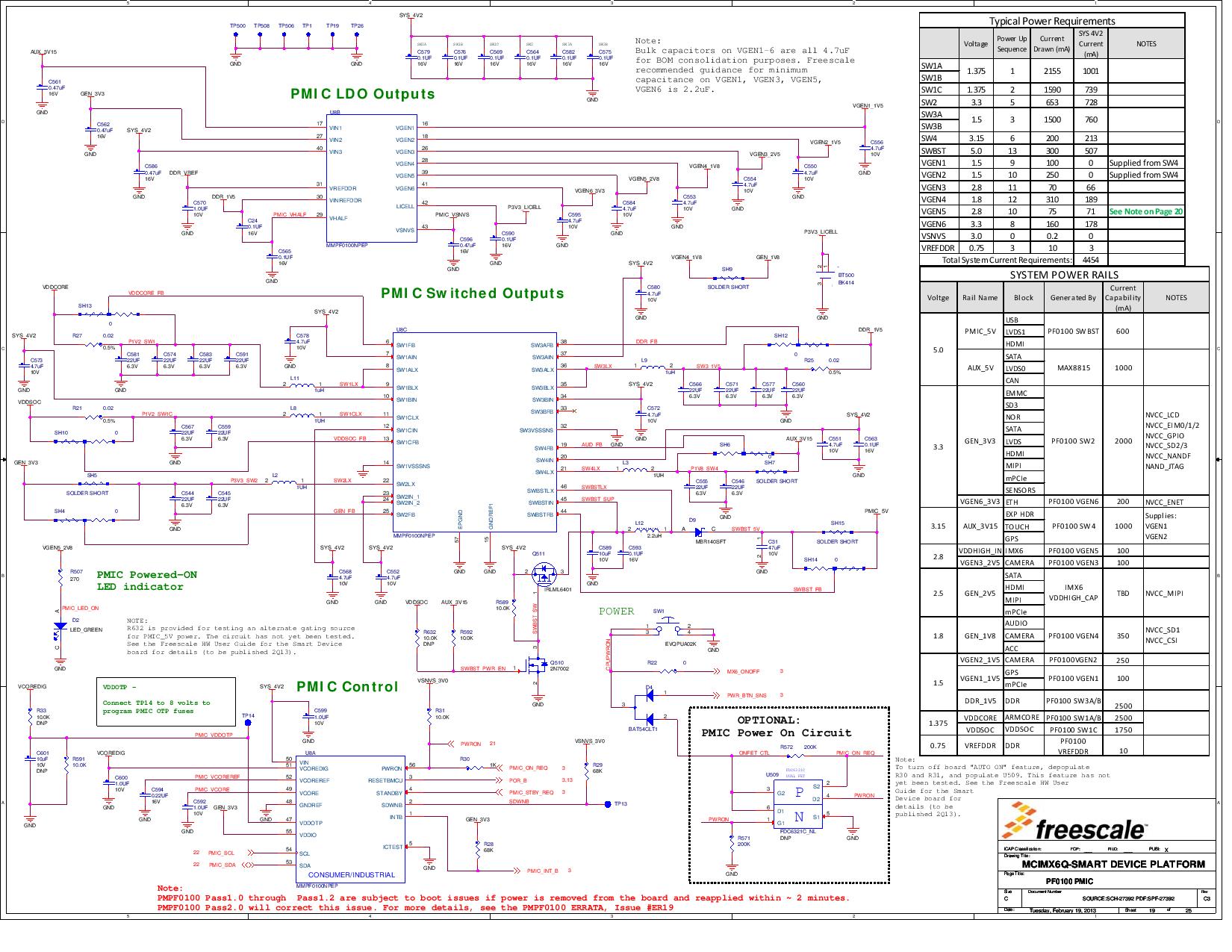

Vignette
1 / 23
Description
- MCIMX6Q-SDP, SABRE Development Platform for Smart Devices Based on the i.MX 6 Series. Smart Application Blueprint for Rapid Engineering (SABRE) platform for smart devices allows to evaluate the full multimedia performance capabilities of i.MX 6 series applications processors based on the i.MX 6 Quad families of consumer applications processors and also based on ARM Cortex-A9 technology. Targeted for any device requiring an intelligent display, connectivity, low power and amazing user experience, the SABRE platform for smart devices provides a foundation for enabling new product designs in markets such as portable computing, education, industrial, medical and home automation
Caractéristiques principales
-
Embedded System TypeSoC
-
Family Namei.MX 6
-
Core ProcessorARM Cortex-A9
Pièces en vedette (22)
| Pièce numéro | Fabricant | Type | Description | |||
|---|---|---|---|---|---|---|
|
ABMM-25.000MHZ-B2-T | Abracon | Crystals | Crystal 25MHz ±20ppm (Tol) ±50ppm (Stability) 18pF FUND 40Ohm 4-Pin CSMD T/R | Ajouter au panier | |
|
MIC2026-1YM | Microchip Technology | USB Power Switches | USB Power Switch Dual 5.5V 0.9A 8-Pin SOIC N Tube | Ajouter au panier | |
|
MMPF0100NPANESR2 | NXP Semiconductors | PMIC Solutions | PMIC Solution 2.8V to 4.5V 56-Pin HVQFN EP T/R | Ajouter au panier | |
|
MT41K128M16JT-125:K | Micron Technology | DRAM Chip | DRAM Chip DDR3L SDRAM 2Gbit 128Mx16 1.35V 96-Pin FBGA Tray | Ajouter au panier | |
|
LTC3025EDC#TRPBF | Analog Devices | Linear Regulators | LDO Regulator Pos 0.4V to 3.6V 0.3A 6-Pin DFN EP T/R | Ajouter au panier | |
|
ABS07-32,768KHZ-T | Abracon | Crystals | Crystal 0.032768MHz ±20ppm (Tol) 12.5pF FUND 70000Ohm 2-Pin CSMD T/R | Ajouter au panier | |
|
NC7WZ17P6X | onsemi | Buffers and Line Drivers | Schmitt Trigger Buffer 2-CH Non-Inverting CMOS 6-Pin SC-88 T/R | Ajouter au panier | |
|
TXS0102DCUR | Texas Instruments | Level Translators | Voltage Level Translator 2-CH Bidirectional 8-Pin VSSOP T/R | Ajouter au panier | |
|
MAX8903CETI+T | Analog Devices | Battery Management ICs | Switching Battery Charger Li-Ion 2000mA 4.2V 28-Pin TQFN EP T/R | Ajouter au panier | |
|
|
MMPF0100NPAZES | NXP Semiconductors | PMIC Solutions | Application Processors 2.8V to 4.5V Automotive 56-Pin QFN EP Tray | Ajouter au panier | |
|
FDC6331L | onsemi | Power Switches | Power Switch Hi Side 1-OUT 2.8A 3.8Ohm 6-Pin TSOT-23 T/R | Ajouter au panier | |
|
MMPF0100NPAEP | NXP Semiconductors | PMIC Solutions | Application Processors 2.8V to 4.5V 56-Pin HVQFN EP Tray | Ajouter au panier | |
