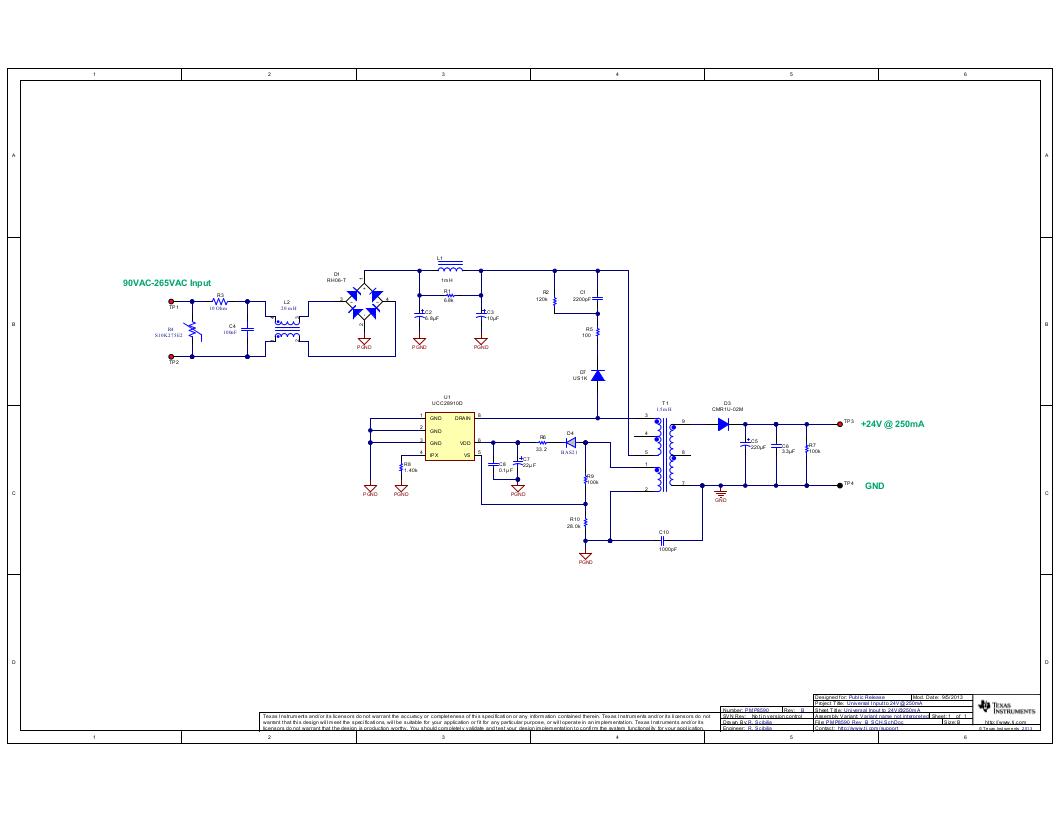

PMP8590, Integrated FET, Primary Side Regulated, Isolated Flyback, Universal Input to 24V@250mA Ref Design
Using Part
Vignette
1 / 2
Description
- PMP8590, Integrated FET, Primary Side Regulated, Isolated Flyback, Universal Input to 24V@250mA Ref Design. The PMP8590 supplies 24V@250mA starting from universal mains. The UCC28910 is a primary side regulated quasi resonant controller. It has an internal 700V FET, enabling an even simpler solution for isolated flyback converters
Caractéristiques principales
-
Conversion TypeAC to DC
-
Input Voltage90 to 256 (AC) V
-
Output Voltage24 V
-
Output Current0.25 A
-
Output Power6 W
-
Efficiency82 %
-
TopologyFlyback- Integrated Switch
Pièces en vedette (2)
| Pièce numéro | Fabricant | Type | Description | |||
|---|---|---|---|---|---|---|
|
UCC28910D | Texas Instruments | AC to DC Switching Converters | AC to DC Switching Converter Flyback 115kHz Tube 7-Pin SOIC | Ajouter au panier | |
|
|
UCC28910DR | Texas Instruments | AC to DC Switching Converters | AC to DC Switching Converter Flyback 115kHz T/R 7-Pin SOIC | Ajouter au panier | |
