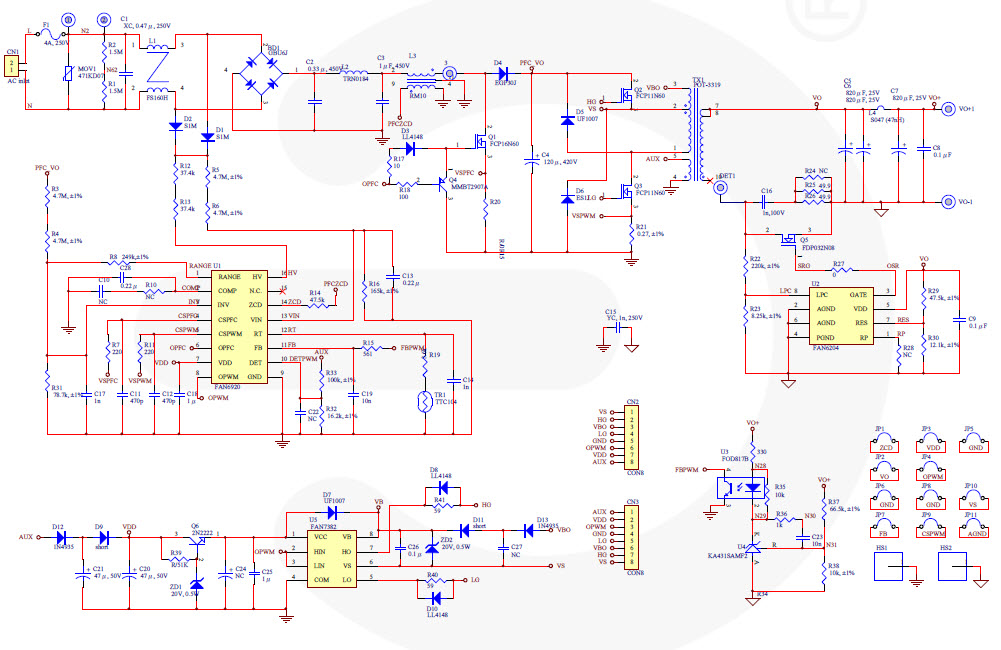

RD-352, Reference Design for 120W, 19V AC to DC Single Output Power Supply for Desktop PC Power Supply
Using Part
Vignette
1 / 1
Pour les produits finaux
- Compact SMPS
Description
- RD-352, Reference Design for 120W, 19V AC to DC Single Output Power Supply for Desktop PC Power Supply. FAN6920MR dual switch flyback converter, 90 to 264 Vac input and con provide to 129V output
Caractéristiques principales
-
Conversion TypeAC to DC
-
Input Voltage90 to 264 (AC) V
-
Output Voltage19 V
-
Output Current6.32 A
-
Output Power120 W
-
Efficiency93.51 %
-
TopologyFlyback
Pièces en vedette (7)
| Pièce numéro | Fabricant | Type | Description | |||
|---|---|---|---|---|---|---|
|
FOD817BSD | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD T/R | Ajouter au panier | |
|
|
FOD817B3S | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD Black Box | Ajouter au panier | |
|
FOD817B300 | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP Black Box | Ajouter au panier | |
|
|
FOD817B300W | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP Black Box | Ajouter au panier | |
|
|
FOD817BS | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD Black Box | Ajouter au panier | |
|
|
FOD817B | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP Black Box | Ajouter au panier | |
|
|
FOD817B3SD | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD Black T/R | Ajouter au panier | |
