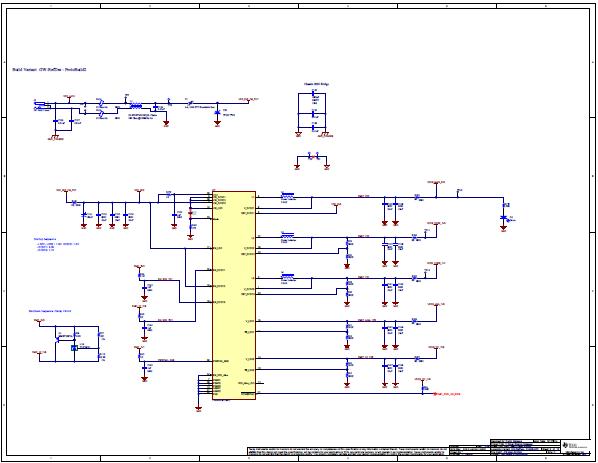

TIEP-SMART-ENERGY-GATEWAY, Smart Home and Energy Gateway Reference Design
Using Part
Vignette
1 / 13
Documents connexes
Pour les produits finaux
- Consumer Electronics
- Gaming and Toys
- Industrial Automation HMI
- Medical and Healthcare
- Printers
- Vending Machine
- Weight Scale
Description
- TIEP-SMART-ENERGY-GATEWAY, Smart Home and Energy Gateway Reference Design. The Smart Home and Energy Gateway Reference Design offers a complete system solutions for measurement, management and communication of energy systems for smart homes and buildings. The design is a bridge between different communication interfaces, such as WiFi, Ethernet, ZigBee or Bluetooth, that are commonly found in residential and commercial buildings. Since objects in the house and buildings are becoming more and more connected, the gateway design needs to be flexible to accommodate different RF standard, since no single RF standard is dominating the market. The gateway addresses this problem by supporting existing legacy RF standards (WiFi, Bluetooth) and newer RF standards (ZigBee, BLE
Caractéristiques principales
-
Embedded System TypeSoC
-
Family NameSitara AM335x
-
Core ProcessorARM Cortex-A8
Pièces en vedette (27)
| Pièce numéro | Fabricant | Type | Description | |||
|---|---|---|---|---|---|---|
|
FT230XQ-R | Future Technology Devices International Limited | USB Interface ICs | Full Speed/High Speed USB to Basic UART IC USB 1.1/USB 2.0 5V T/R 16-Pin QFN EP | Ajouter au panier | |
|
SN74AVC4T774PWR-235028647 | Texas Instruments | Level Translators | Voltage Level Translator 4-CH Bidirectional 16-Pin TSSOP T/R | Ajouter au panier | |
|
|
SN74AVC4T774PWR | Texas Instruments | Level Translators | Voltage Level Translator 4-CH Bidirectional 16-Pin TSSOP T/R | Ajouter au panier | |
|
SN74LVC07APWRG3 | Texas Instruments | Buffers and Line Drivers | Buffer/Driver 6-CH Non-Inverting Open Drain CMOS 14-Pin TSSOP T/R | Ajouter au panier | |
|
|
SN74LVC07APWR | Texas Instruments | Buffers and Line Drivers | Buffer/Driver 6-CH Non-Inverting Open Drain CMOS 14-Pin TSSOP T/R | Ajouter au panier | |
|
|
SN74AVC4T774PWR-245573301 | Texas Instruments | Level Translators | Voltage Level Translator 4-CH Bidirectional 16-Pin TSSOP T/R | Ajouter au panier | |
|
TLV70218DBVT | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.8V 0.3A 5-Pin SOT-23 T/R | Ajouter au panier | |
|
TLVH431IDBZR | Texas Instruments | Voltage References | V-Ref Adjustable 1.24V to 18V 80mA 3-Pin SOT-23 T/R | Ajouter au panier | |
|
SN74LVC1G04DCKR-P | Texas Instruments | Inverters and Schmitt Triggers | Inverter 1-Element CMOS 5-Pin | Ajouter au panier | |
|
TPS2051BDGNRG4 | Texas Instruments | USB Power Switches | Power Switch Hi Side 3-OUT 0A 0.075mOhm 8-Pin HVSSOP EP T/R | Ajouter au panier | |
|
TDA04H0SB1R | C&K | Switch DIP | Switch DIP OFF ON SPST 4 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD T/R | Ajouter au panier | |
|
DP83848JSQ/NOPB | Texas Instruments | PHY | PHY 1-CH 10Mbps/100Mbps 3.3V 40-Pin WQFN EP T/R | Ajouter au panier | |
