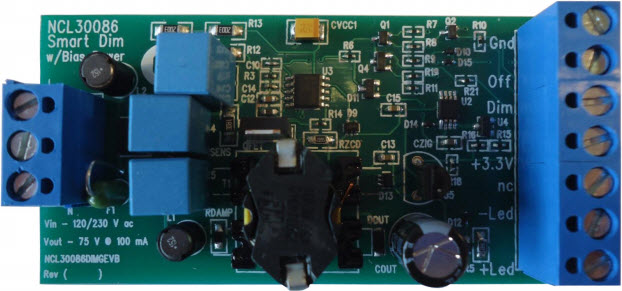

EVBUM2293/D, NCL30086SMRTGEVB 8W Smart LED Driver Evaluation Board
Using Part
Vignette
1 / 5
Documents connexes
Pour les produits finaux
- Smart Lighting
Description
- EVBUM2293/D, NCL30086SMRTGEVB 8W Smart LED Driver demonstration board. The NCL30086 board demonstrates an 8W high PF SEPIC LED driver with a 3.3V always on auxiliary voltage rail to power a MCU/wireless transceiver plus other accessories. A simple dimming and ON/OFF control is also provided that demonstrates dimming control of the NCL30086 as well as dim to off operation
Caractéristiques principales
-
Input Voltage100 to 265 (AC) V
-
Output Voltage40 to 80 V
-
Output Current0.1 A
-
Output Power8 W
Pièces en vedette (6)
| Pièce numéro | Fabricant | Type | Description | |||
|---|---|---|---|---|---|---|
|
NCP431ACSNT1G | onsemi | Voltage References | V-Ref Adjustable 2.5V to 36V 100mA 3-Pin SOT-23 T/R | Ajouter au panier | |
|
LM317AH/NOPB | Texas Instruments | Linear Regulators | Standard Regulator Pos 1.2V to 37V 1.5A 3-Pin TO-39 Bulk | Ajouter au panier | |
|
|
NCP431AVSNT1G | onsemi | Voltage References | V-Ref Adjustable 2.5V to 36V 100mA 3-Pin SOT-23 T/R | Ajouter au panier | |
|
|
NCP431AISNT1G | onsemi | Voltage References | V-Ref Adjustable 2.5V to 36V 100mA 3-Pin SOT-23 T/R | Ajouter au panier | |
|
|
LM317AH/NOPB | Texas Instruments | Linear Regulators | Standard Regulator Pos 1.2V to 37V 1.5A 3-Pin TO-39 Bulk | Ajouter au panier | |
|
|
LM317AH | Texas Instruments | Linear Regulators | Standard Regulator Pos 1.2V to 37V 1.5A 3-Pin TO-39 Bulk | Ajouter au panier | |
