Adaptable Power Supply Using the LTC1773
Progetto di riferimento usando la parte LTC1773 di Analog Devices
Immagine
1 / 1
Per prodotti finali
- Power Management
Per contattare il Servizio Clienti.

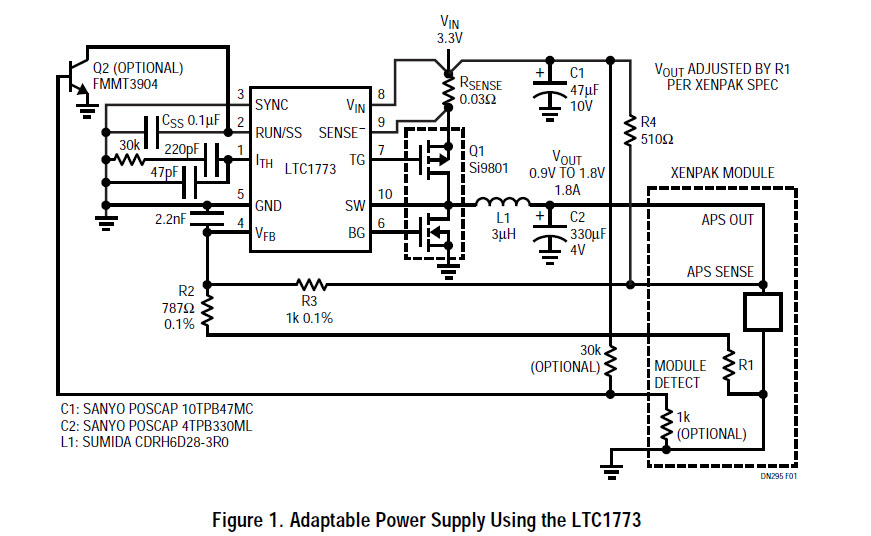

- Circuit shows LTC1773 current mode synchronous buck regulator provides an efficient, cost effective and space saving APS solution that exceeds the MSA standard, It used in this application including its 0.8V reference and 2.65V
Funzioni principali
-
Conversion TypeDC to DC
-
Input Voltage3.3 V
-
Output Voltage0.9 to 1.8 V
-
Efficiency91 %
-
TopologyBuck
Parti in primo piano (3)
| Numero parte | Produttore | Tipo | Per contattare il Servizio Clienti. | |||
|---|---|---|---|---|---|---|
|
LTC1773EMS#TR | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 600kHz 10-Pin MSOP T/R | AGGIORNA | |
|
|
LTC1773EMS | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 600kHz 10-Pin MSOP | AGGIORNA | |
|
|
LTC1773EMS#TRPBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 600kHz 10-Pin MSOP T/R | AGGIORNA | |
