PMP3158.3, Multiphase, Sync Bucks, Linear for Single-board Computer (SBC) Power (2.5V @ 3A)
Progetto di riferimento usando la parte TPS51116RGE di Texas Instruments

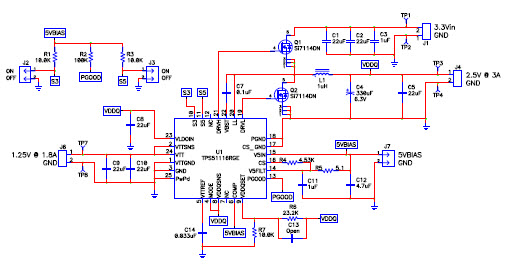

Immagine
1 / 1
Documenti associati
Per prodotti finali
- Computers and Peripherals
Per contattare il Servizio Clienti.
- PMP3158.3, Multiphase, Sync Bucks, Linear for Single-board Computer (SBC) Power (2.5V @ 3A). The PMP3158 is a multiple output power supply for a single board computer. The TPS41040 is used to produce 3.3V@16A using a multiphase sync buck. The core voltage is supplied by a TPS40040 sync buck that outputs 1.1V@15A. The TPS51116 is used to supply DDR memory, there are two separate supplies (2.5V and 1.8V)
Funzioni principali
-
Conversion TypeDC to DC
-
Input Voltage3.1 to 3.5 V
-
Output Voltage2.5 V
-
Output Current3 A
-
Output Power7.5 W
-
TopologyBuck
Parti in primo piano (2)
| Numero parte | Produttore | Tipo | Per contattare il Servizio Clienti. | |||
|---|---|---|---|---|---|---|
|
TPS51116RGET | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 400kHz 24-Pin VQFN EP T/R | AGGIORNA | |
|
|
TPS51116RGER | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 400kHz 24-Pin VQFN EP T/R | AGGIORNA | |
