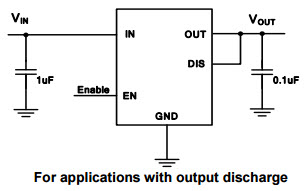

Typical Application for AP2280-2 Single Channel Slew Rate Controlled Load Switch for Applications with output discharge
Progetto di riferimento usando la parte AP2280 di Diodes Incorporated
Immagine
1 / 1
Per prodotti finali
- Bluetooth Headset
- Cellular Phone
- GPS
- Notebook
- Smart Phone
- Solid State Drive (SSD)
Per contattare il Servizio Clienti.
- Typical Application for AP2280-2 is a slew rate controlled load switch is a single P-channel MOSFET power switch designed for high-side load-switching or power distribution applications with output discharge. The AP2280 load switch is designed to operate from 1.5V to 6.0V, making it ideal for 1.8V, 2.5V, 3.3V, and 5V systems. The typical quiescent supply current is only 0.004uA, making it ideal for battery powered distribution system where the power consumption is a concern
Funzioni principali
-
Input Voltage1.5 to 6 V
-
Output Voltage6.3 V
Parti in primo piano (5)
| Numero parte | Produttore | Tipo | Per contattare il Servizio Clienti. | |||
|---|---|---|---|---|---|---|
|
AP2280-2FMG-7 | Diodes Incorporated | Power Switches | Power Switch Hi Side 1-OUT 0A 200mOhm 6-Pin UDFN EP T/R | AGGIORNA | |
|
AP22804BM8-13 | Diodes Incorporated | USB Power Switches | Power Switch Hi Side 1-OUT 0A 50mOhm 8-Pin MSOP T/R | AGGIORNA | |
|
AP2280-1WG-7 | Diodes Incorporated | Power Switches | Power Switch Hi Side 1-OUT 0A 200mOhm 5-Pin SOT-25 T/R | AGGIORNA | |
|
AP2280-2WG-7 | Diodes Incorporated | Power Switches | Power Switch Hi Side 1-OUT 0A 200mOhm 5-Pin SOT-25 T/R | AGGIORNA | |
|
AP2280-1FMG-7 | Diodes Incorporated | Power Switches | Power Switch Hi Side 1-OUT 0A 200mOhm 6-Pin UDFN EP T/R | AGGIORNA | |
