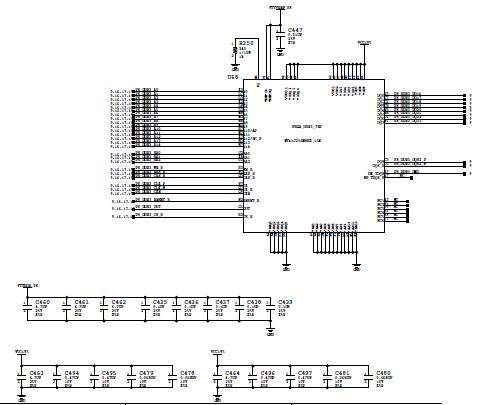

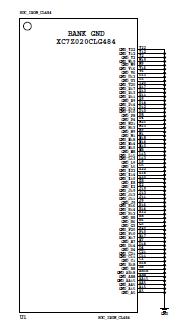

PMP7877.6, Power Reference Design for Xilinx Zynq-7000
Progetto di riferimento usando la parte LM21305SQE/NOPB di Texas Instruments
Immagine
1 / 43
Documenti associati
Per prodotti finali
- Power Supplies
Per contattare il Servizio Clienti.
- PMP7877.6, Power Reference Design for Xilinx Zynq-7000. This is a multi-output buck converter design that has an input voltage range of 10.8Vin to 13.2Vin and has seven regulated outputs: 1Vout @ 5A, 1.8Vout @ 2.5A, 1.5Vout @ 6A, 3.3Vout @ 5A, 3.3Vout @ 5A, 5Vout @ 2A, and 0.75Vout @ 1A continuous/3Apeak. This design has been approved and tested by Xilinx
Funzioni principali
-
Conversion TypeDC to DC
-
Input Voltage10.8 to 13.2 V
-
Output Voltage5 V
-
Output Current2 A
-
Output Power10 W
-
TopologyBuck- Synchronous
Parti in primo piano (64)
| Numero parte | Produttore | Tipo | Per contattare il Servizio Clienti. | |||
|---|---|---|---|---|---|---|
|
LMC555CMX/NOPB | Texas Instruments | Timers | Standard Timer Single -40°C 85°C 8-Pin SOIC T/R | AGGIORNA | |
|
LM3881MM/NOPB | Texas Instruments | Supervisory Circuits | Processor Supervisor 1.22V 3 Active High/Open Drain 8-Pin VSSOP T/R | AGGIORNA | |
|
TXS02612RTWR | Texas Instruments | Level Translators | Voltage Level Translator 6-CH Bidirectional 24-Pin WQFN EP T/R | AGGIORNA | |
|
MIC2025-1YM TR | Microchip Technology | USB Power Switches | USB Power Switch Single 5.5V 0.7A 8-Pin SOIC N T/R | AGGIORNA | |
|
SN74AVC1T45DCKR | Texas Instruments | Level Translators | Voltage Level Translator 1-CH Bidirectional 6-Pin SC-70 T/R | AGGIORNA | |
|
PCA9548ARGERG4 | Texas Instruments | Bus Switches | I2C Bus Switch 1-Element 8-IN 24-Pin VQFN EP T/R | AGGIORNA | |
|
SN74LVC1G08DCKR-P | Texas Instruments | Logic Gates | AND Gate 1-Element 2-IN CMOS 5-Pin SC-70 | AGGIORNA | |
|
TS5A3359DCURG4 | Texas Instruments | Analog Switch Multiplexers | Analog Switch/Analog Multiplexer Single 1:3 8-Pin VSSOP T/R | AGGIORNA | |
|
LMR12020XSD/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 20V Step Down Single-Out 1V to 18V 2A 10-Pin WSON EP T/R | AGGIORNA | |
|
|
LMR12020XSD/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 20V Step Down Single-Out 1V to 18V 2A 10-Pin WSON EP T/R | AGGIORNA | |
|
LM25119PSQE/NOPB | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 40A/20A 750kHz Automotive AEC-Q100 32-Pin WQFN EP T/R | AGGIORNA | |
|
CSD16412Q5A | Texas Instruments | MOSFETs | Trans MOSFET N-CH 25V 14A 8-Pin VSONP EP T/R | AGGIORNA | |
