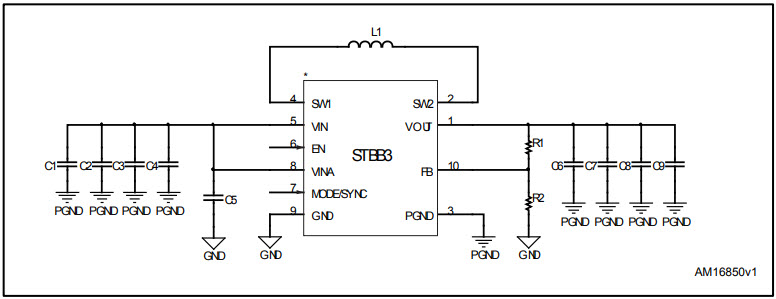

STEVAL-ISA141V1, 2A, 2 MHz, 3.3 Vout, High-Efficiency, Dual-Mode Buck-Boost DC-DC Converter Evaluation Board based on STBB3J
Progetto di riferimento usando la parte STBB3J di STMicroelectronics
Immagine
1 / 2
Per prodotti finali
- Li-Ion Battery Charger
Per contattare il Servizio Clienti.
- STEVAL-ISA141V1, Evaluation Board based on the STBB3J is a fixed frequency, high-efficiency, buck-boost DC-DC converter which provides output voltages from 1.2 to 5.5 V starting from an input voltage in the range of 1.8 to 5.5 V. This device can operate with input voltages higher than, equal to, or lower than the output voltage making the product suitable for cell lithium-ion applications where the output voltage is within the battery voltage range. The MODE pin allows the selection between auto mode and forced PWM mode, taking advantage of either a lower power consumption or best dynamic performance
Funzioni principali
-
Conversion TypeDC to DC
-
Input Voltage1.8 to 5.5 V
-
Output Voltage3.3 V
-
Output Current2 A
-
Efficiency94 %
-
TopologyBuck Boost
Parti in primo piano (2)
| Numero parte | Produttore | Tipo | Per contattare il Servizio Clienti. | |||
|---|---|---|---|---|---|---|
|
STBB3JR | STMicroelectronics | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 1.8V to 5.5V Step Down/Step Up Single-Out 1.2V to 5.5V 2A 20-Pin Flip-Chip T/R | AGGIORNA | |
|
|
STBB3JCCR | STMicroelectronics | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 1.8V to 5.5V Step Down/Step Up Single-Out 1.2V to 5.5V 2A 20-Pin Flip-Chip T/R | AGGIORNA | |
