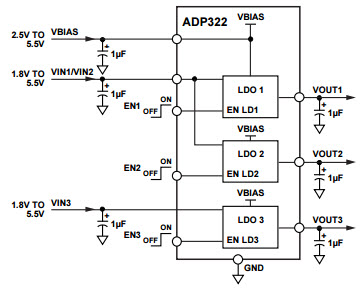

Typical Application for ADP322 Triple, 200mA, Low Noise, High PSRR Voltage Regulator
Progetto di riferimento usando la parte ADP322ACPZ di Analog Devices
Immagine
1 / 1
Per prodotti finali
- Audio Appliances
- Battery Powered Equipment
- DC to DC Regulator
- Digital Video Camera
- Mobile Phone
- Portable
- Portable Medical Devices
Per contattare il Servizio Clienti.
- Typical Application for ADP322 Triple, 200mA, Low Noise, High PSRR Voltage Regulator. The ADP322/ADP323 200 mA triple output LDOs combine high PSRR, low noise, low quiescent current and low dropout voltage to extend the battery life of portable devices and are ideally suited for wireless applications with demanding performance and board space requirements
Funzioni principali
-
Conversion TypeDC to DC
-
TopologyLDO
Parti in primo piano (7)
| Numero parte | Produttore | Tipo | Per contattare il Servizio Clienti. | |||
|---|---|---|---|---|---|---|
|
ADP322ACPZ-165-R7 | Analog Devices | Linear Regulators | LDO Regulator Pos 3.3V1.8V1.2V 0.2A/0.2A/0.2A 16-Pin LFCSP EP T/R | AGGIORNA | |
|
|
ADP322ACPZ-115-R7 | Analog Devices | Linear Regulators | LDO Regulator Pos 3.3V2.8V1.8V 0.2A/0.2A/0.2A 16-Pin LFCSP EP T/R | AGGIORNA | |
|
|
ADP322ACPZ-145-R7 | Analog Devices | Linear Regulators | LDO Regulator Pos 3.3V2.5V1.2V 0.2A/0.2A/0.2A 16-Pin LFCSP EP T/R | AGGIORNA | |
|
|
ADP322ACPZ-135-R7 | Analog Devices | Linear Regulators | LDO Regulator Pos 3.3V2.5V1.8V 0.2A/0.2A/0.2A 16-Pin LFCSP EP T/R | AGGIORNA | |
|
|
ADP322ACPZ-155-R7 | Analog Devices | Linear Regulators | LDO Regulator Pos 3.3V1.8V1.5V 0.2A/0.2A/0.2A 16-Pin LFCSP EP T/R | AGGIORNA | |
|
|
ADP322ACPZ-189-R7 | Analog Devices | Linear Regulators | LDO Regulator Pos 2.5V1.8V1.2V 0.2A/0.2A/0.2A 16-Pin LFCSP EP T/R | AGGIORNA | |
|
|
ADP322ACPZ-175-R7 | Analog Devices | Linear Regulators | LDO Regulator Pos 2.8V1.8V1.2V 0.2A/0.2A/0.2A 16-Pin LFCSP EP T/R | AGGIORNA | |
